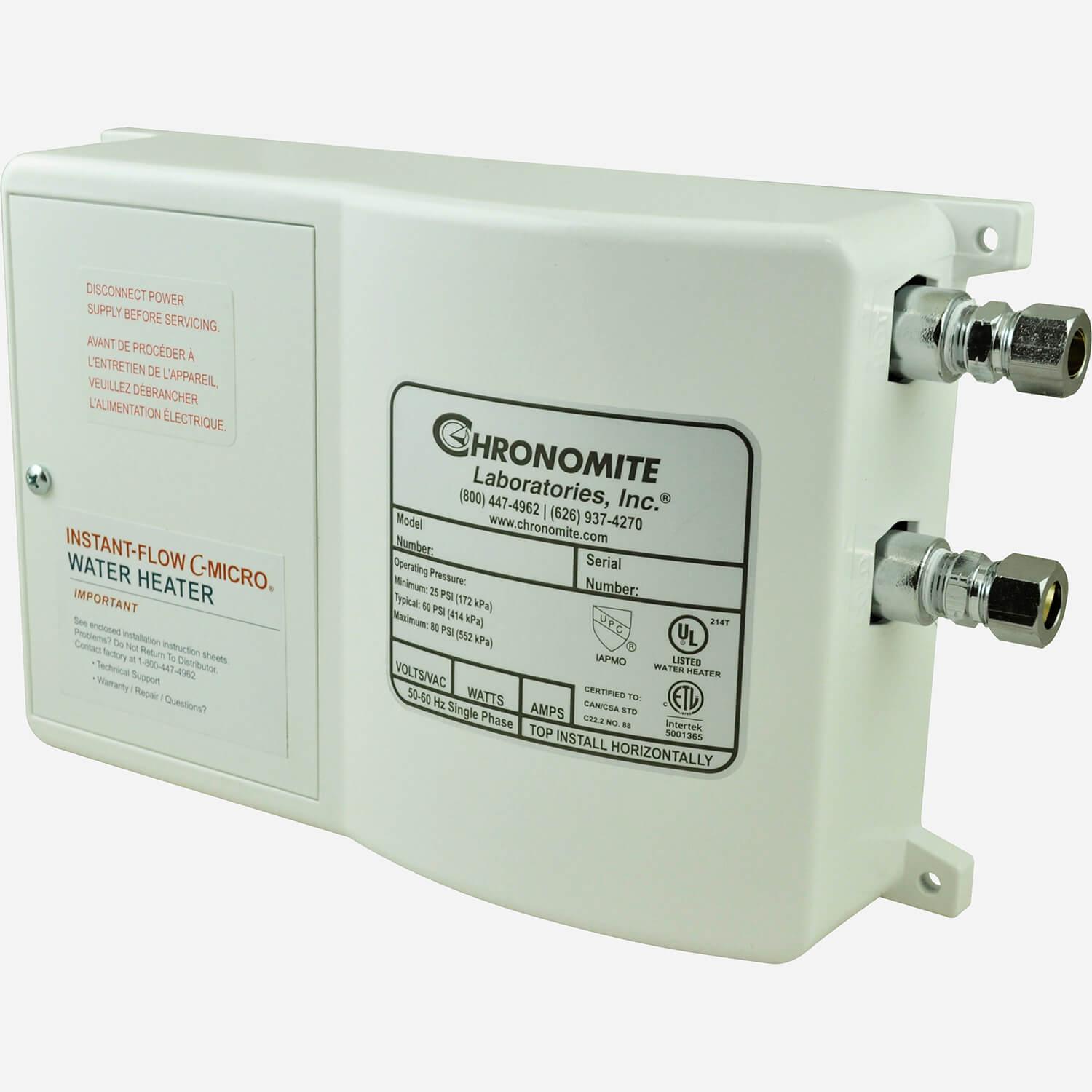

CHRONOMITE® Instant-Flow® C-Micro® CM Series CM-40L/208 Electric Water Heater, 8.32 kW, 1 ph, 208 V
- Manufacturer: Morris Group International
- Brand Name: CHRONOMITE®
- Part#: CHOCM-40L-208
- MPN: CM-40L/208
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
CHRONOMITE® Instant-Flow® C-Micro® Electric Water Heater, CM Series, 8.32 kW, 0.2 gpm Flow Rate, 99 % Efficiency, 40 A, 208 V, 1 ph Phase, Compression Connection, 3/8 in Connection, 25 to 80 psi, 8 AWG Wire, Aluminum, Finish: Rugged, White, Lead-Free, 104 to 160 deg F, 6-1/4 in H x 10-1/8 in W x 2-3/4 in D, Celcon Plastic/Nichrome Element, Additional Information: Tankless, Thermostatic
| Additional Information | : | Tankless, Thermostatic |
| Amperage Rating | : | 40 A |
| Color | : | White |
| Connection Size | : | 3/8 in |
| Connection Type | : | Compression |
| Dimensions | : | 6-1/4 in H x 10-1/8 in W x 2-3/4 in D |
| Efficiency | : | 99 % |
| Element Material | : | Celcon Plastic/Nichrome |
| Finish | : | Rugged |
| Flow Rate | : | 0.2 gpm |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Aluminum |
| Phase | : | 1 ph |
| Power Rating | : | 8.32 kW |
| Pressure Rating | : | 25 to 80 psi |
| Series | : | CM Series |
| Temperature Rating | : | 104 to 160 deg F |
| Voltage Rating | : | 208 V |
| Wire Size | : | 8 AWG |
- Unlimited hot water
- Maintains consistent water temperature with digital microprocessor technology
- Eliminates scalding
- Preset factory temperature of 104 to 160 deg F with no mixing valve required
- Vandal-resistant rugged cast aluminum housing
- Made in America
Instruction/Installation Manual
