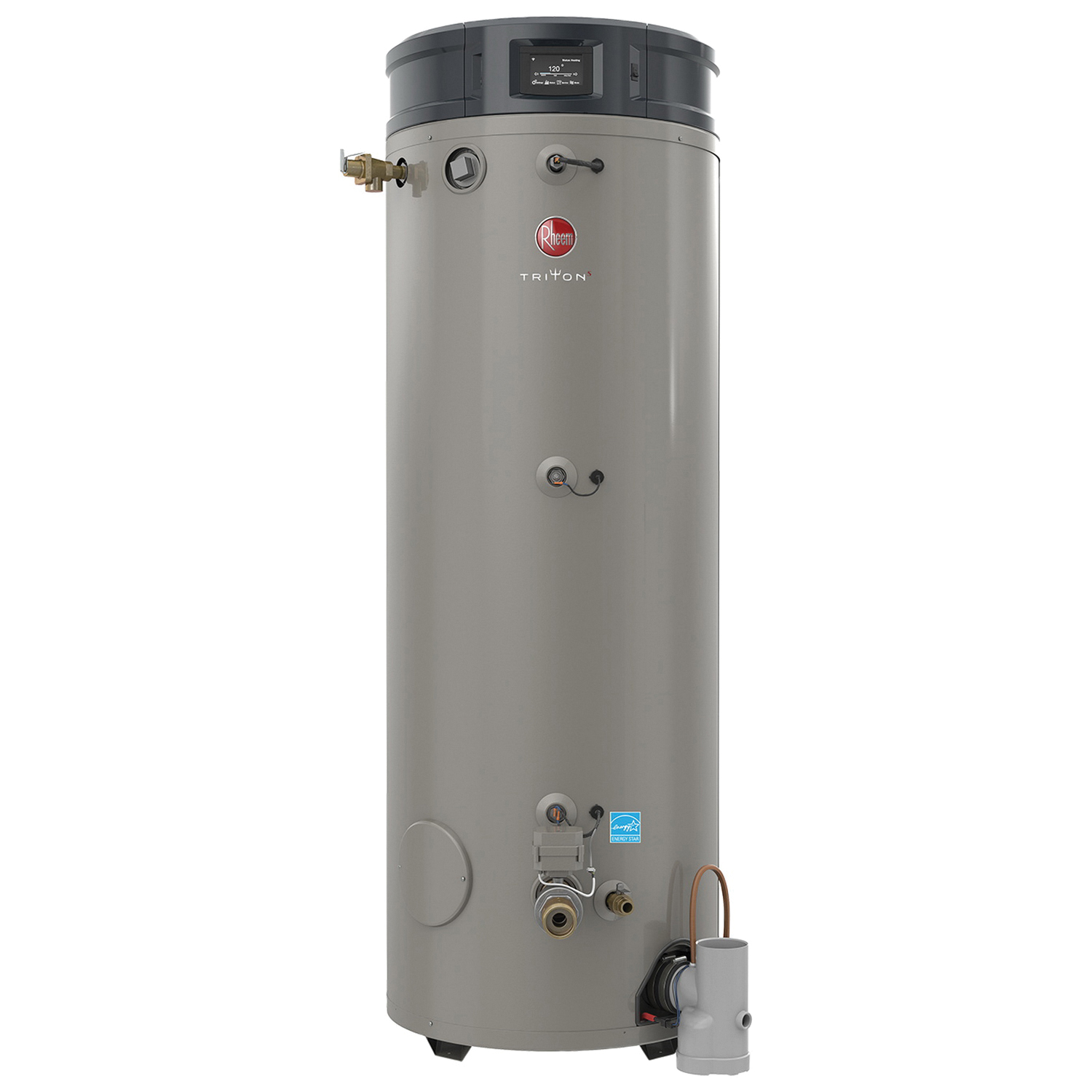

Rheem® TRITON® Series SS Premium GHE80SS-300(A) Intelligent High Efficiency Water Heater, 80 gal, 300000 Btu/hr
- Manufacturer: Rheem Manufacturing
- Brand Name: Rheem®
- Part#: RHEGHE80SS-300A
- MPN: GHE80SS-300(A)
- UPC: 020352692500
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Rheem® Intelligent High Efficiency Water Heater, TRITON® Series, Model: SS Premium, 80 gal Capacity, 300000 Btu/hr, 1105 Btu/hr Standby Loss, 97 % Efficiency, 95 % AFUE Rating, 2 to 6 in Vent, Power Direct Vent, 7.5 A, 110 V, 50/60 Hz, NPT Connection, 160 psi, Energy Star Compliant: Yes, Natural Gas, Propane Gas Fuel, Steel, Finish: Porcelain, 185 deg F, 26-3/8 in Dia x 67-7/8 in H, 0 to 8999 ft Altitude
| AFUE Rating | : | 95 % |
| Altitude | : | 0 to 8999 ft |
| Amperage Rating | : | 7.5 A |
| BTU Rating | : | 300000 Btu/hr |
| Capacity | : | 80 gal |
| Connection Type | : | NPT |
| Dimensions | : | 26-3/8 in Dia x 67-7/8 in H |
| Efficiency | : | 97 % |
| Energy Star Compliant | : | Yes |
| Finish | : | Porcelain |
| Frequency Rating | : | 50/60 Hz |
| Fuel Type | : | Natural Gas, Propane Gas |
| Material | : | Steel |
| Model | : | SS Premium |
| Pressure Rating | : | 160 psi |
| Series | : | TRITON® Series |
| Standby Loss | : | 1105 Btu/hr |
| Temperature Rating | : | 185 deg F |
| Vent Size | : | 2 to 6 in |
| Vent Type | : | Power Direct |
| Voltage Rating | : | 110 V |
- Built-in smart monitoring technology
- Integrated BMS connectivity via bacnet port
- Ultra low NOx
- LeakSense™ intelligent leak detection system detect leaks as small as a grain of sand and provides real time notifications that warn you before catastrophic failure occurs
- EcoNet® smart monitoring technology with integrated Wi-Fi Rheem® exclusive provides performance updates and alerts via both mobile device and full color LCD display
- Systematic health checks ongoing self-monitoring of Triton® most vital components and alerts of potential issues
- Preventive maintenance alerts - maintenance reminders help to extend life of the tank
- Built-in condensate neutralizer standard on both base and premium model reduces installation time as plumbers no longer need to install this component
- Multiple connection points multiple water connections at the top, side and bottom of the unit simplify installation for replacement of any model
- Patented built-in condensate neutralizer reduces water acidity for safe drainage
- Triple pass heat exchanger constructed with premium ASME-grade steel to minimize rust and corrosion for extended tank life and maximum thermal efficiency
- Advanced power anodes self-adjusting, non-sacrificial power anodes provide systematic monitoring of anode health and remaining life
- Full modulation maximizes energy savings by optimizing Btu input for specific water heating demand
- Scheduling capability adjust to heat water only during peak operating hours when your business needs it most
- LeakGuard™ all inclusive leak detection and prevention system with auto-shut off valve limits water leakage outside the tank to 24 oz
- Built-in bacnet port easily connects to building management systems (BMS)
- Energy and water usage reports track usage trends and manage energy and water consumption through the Rheem® EcoNet® app
- ASME tank construction
- Triton® commercial gas water heaters are the most accurate, all inclusive leak detection and prevention system in the market
-
