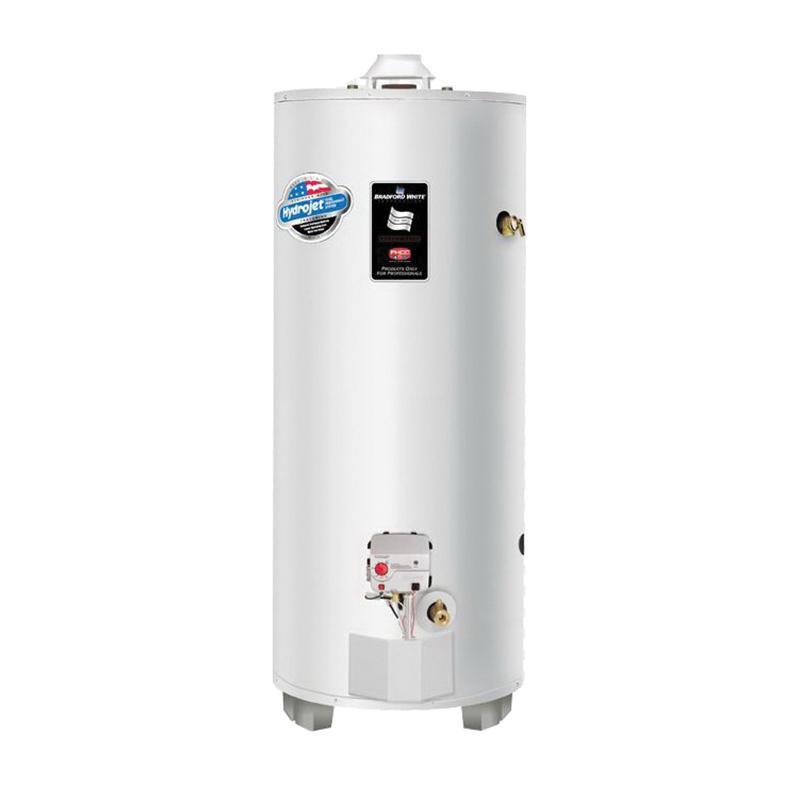

Bradford White® M-I-75S6BN Gas Water Heater, 75 gal, 76000 Btu/hr, 22.3 kW, Natural Gas
- Manufacturer: Bradford White Corporation
- Brand Name: Bradford White®
- Part#: BRWM-I-75S6BN
- MPN: M-I-75S6BN
- UPC: 671632612116
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Bradford White® Gas Water Heater, 75 gal Capacity, 76000 Btu/hr, 22.3 kW, 82 gph Recovery Rate, 80 % Efficiency, 4 in Vent, NPT Connection, 150 psi, Natural Gas Fuel, Piezo Ignition System, Lead-Free, 24 in Dia x 62-3/8 in H x 28-3/8 in D
| BTU Rating | : | 76000 Btu/hr |
| Capacity | : | 75 gal |
| Connection Type | : | NPT |
| Dimensions | : | 24 in Dia x 62-3/8 in H x 28-3/8 in D |
| Efficiency | : | 80 % |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Piezo |
| Lead-Free/Contains Lead | : | Lead-Free |
| Power Rating | : | 22.3 kW |
| Pressure Rating | : | 150 psi |
| Recovery Rate | : | 82 gph |
| Vent Size | : | 4 in |
- Intelligent gas control with proven millivolt powered technology and built-in piezo igniter
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
- Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
- An exclusive green LED light prompts the installer during startup and provides 10 different diagnostic codes to assist in troubleshooting
- Flashing green LED provides positive indication that pilot is on
- High-strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
- Factory installed Hydrojet® 2-total performance system
- Bradford White® tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water, this formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F
- Non-CFC foam insulation covers the sides and top of tank, reducing the amount of heat loss, this results in less energy consumption, improved operation efficiencies and jacket rigidity
- Pedestal base
- Hand hole cleanout allows inspection of tank interior and facilitates the removal of sediment deposits
- Protective magnesium anode rod
- 4 in snaplock draft diverter
- Temperature and pressure relief valve included
- Durable tamper-proof design low restriction brass drain valve
