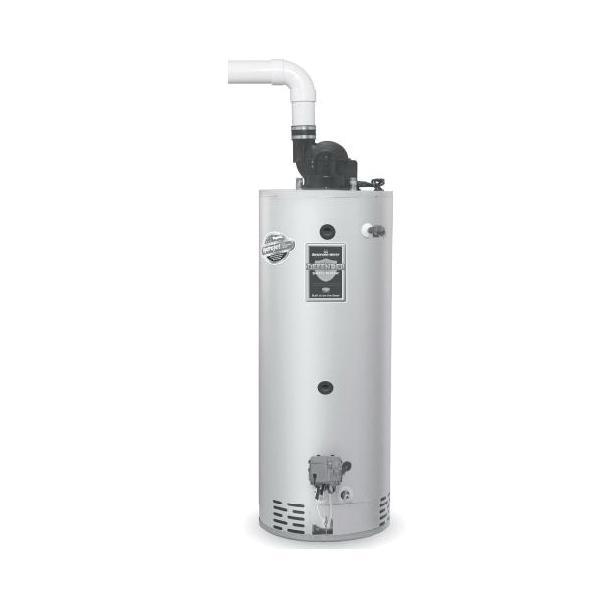

Bradford White® Combi™ TTW® 50T C-SW2-TW50T10FBN Gas Water Heater, 45 gal, 67000 Btu/hr, 19.6 kW, LP Gas, Natural Gas
- Manufacturer: Bradford White Corporation
- Brand Name: Bradford White®
- Part#: BRWCSW2-TW50T10FBN
- MPN: C-SW2-TW50T10FBN
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Bradford White® Gas Water Heater, Model: 50T, 45 gal Capacity, 67000 Btu/hr, 19.6 kW, 4.1 gpm Flow Rate, 72 gph Recovery Rate, 3 in Vent, Power Vent, 3.1 A, 110 V, 60 Hz, NPT Connection, 150 psi, Recovery Efficiency: 80 %, LP Gas, Natural Gas Fuel, ICON System® Ignition System, Spark to Pilot Ignition, Contains Lead, 140 deg F, 22 in Dia x 65-7/8 in H
| Amperage Rating | : | 3.1 A |
| BTU Rating | : | 67000 Btu/hr |
| Capacity | : | 45 gal |
| Connection Type | : | NPT |
| Dimensions | : | 22 in Dia x 65-7/8 in H |
| Flow Rate | : | 4.1 gpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | LP Gas, Natural Gas |
| Ignition System | : | ICON System® |
| Ignition Type | : | Spark to Pilot |
| Lead-Free/Contains Lead | : | Contains Lead |
| Model | : | 50T |
| Power Rating | : | 19.6 kW |
| Pressure Rating | : | 150 psi |
| Recovery Efficiency | : | 80 % |
| Recovery Rate | : | 72 gph |
| Temperature Rating | : | 140 deg F |
| Vent Size | : | 3 in |
| Vent Type | : | Power |
| Voltage Rating | : | 110 V |
- Internal single wall heat exchanger- 1-1/2 in (38 mm) OD glass-coated (Vitraglas®) steel coil
- 1 in NPT solar collector supply and return connections
- Low heat exchanger head loss - up to 10 gpm flow, with less than 5 ft of head loss, greatly reduces the required pump size for heat exchange
- Bradford White® ICON System®, intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot, this results in savings of pilot gas during standby periods (120 VAC)
- Factory installed Hydrojet® total performance system sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank
- Vitraglas® lining, an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water, this formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F (871 deg C)
- Horizontal and vertical venting, with 3 in (76 mm) or 4 in (102 mm) PVC, ABS or CPVC (maximum equivalent vent lengths on reverse side)
- Insulation system 2 in non-CFC foam insulation covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
- Pedestal base
- Water connections, 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
- Two protective anode rods
- Temperature and pressure relief valve installed
- Low restrictive brass drain valve, durable tamper-proof design
- Advanced ScreenLok® technology flame arrestor design flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater
- Flammable vapor sensor electronic sensor prevents burner operation if flammable vapors are detected, the sensor will also prevent operation if there is ongoing flammable vapors burning inside the combustion chamber
- Maintenance-free, regular cleaning of air inlet openings or flame arrestor is not required under normal conditions
- Sight window offers a view of the pilot and burner operation
