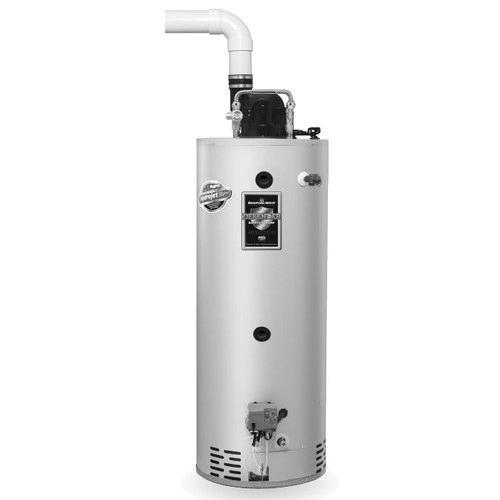

Bradford White® Combi2® TTW® C-DW2-TW75T10BN Gas Water Heater, 72 gal, 76000 Btu/hr, 22.3 kW, Natural Gas
- Manufacturer: Bradford White Corporation
- Brand Name: Bradford White®
- Part#: BRWCDW2-TW75T10BN
- MPN: C-DW2-TW75T10BN
- UPC: 671632636129
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Bradford White® Gas Water Heater, 72 gal Capacity, 76000 Btu/hr, 22.3 kW, 82 gph Recovery Rate, 80 % Efficiency, 3 in Vent, 3.1 A, 110 V, 60 Hz, NPT Connection, 150 psi, Natural Gas Fuel, Spark to Pilot Ignition System, Lead-Free, 26 in Dia x 68-3/8 in H x 31 in D
| Amperage Rating | : | 3.1 A |
| BTU Rating | : | 76000 Btu/hr |
| Capacity | : | 72 gal |
| Connection Type | : | NPT |
| Dimensions | : | 26 in Dia x 68-3/8 in H x 31 in D |
| Efficiency | : | 80 % |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Spark to Pilot |
| Lead-Free/Contains Lead | : | Lead-Free |
| Power Rating | : | 22.3 kW |
| Pressure Rating | : | 150 psi |
| Recovery Rate | : | 82 gph |
| Vent Size | : | 3 in |
| Voltage Rating | : | 110 V |
- Internal double wall heat exchanger - 1-1/2 in OD glass-coated (Vitraglas) steel coil ensures separation of potable water and heating fluid
- Low heat exchanger head loss - up to 8 gpm flow, with less than 6 ft of head loss, greatly reduces the required pump size for heat exchange
- Honeywell self-diagnostic electronic gas control
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
- Microprocessor constantly monitors and controls burner operation to maintain accurate water temperature levels
- An exclusive green LED light prompts the installer during startup and provides 10 different diagnostic codes to assist in troubleshooting
- Factory installed Hydrojet® 2-total performance system
- An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water, this formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F
- 2 in non-CFC foam insulation covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
- Pedestal base
- Two protective anode rods
- Temperature and pressure relief valve included
- Durable tamper-proof design low restriction brass drain valve
- Thermostatic mixing valve (ASSE approved) included
