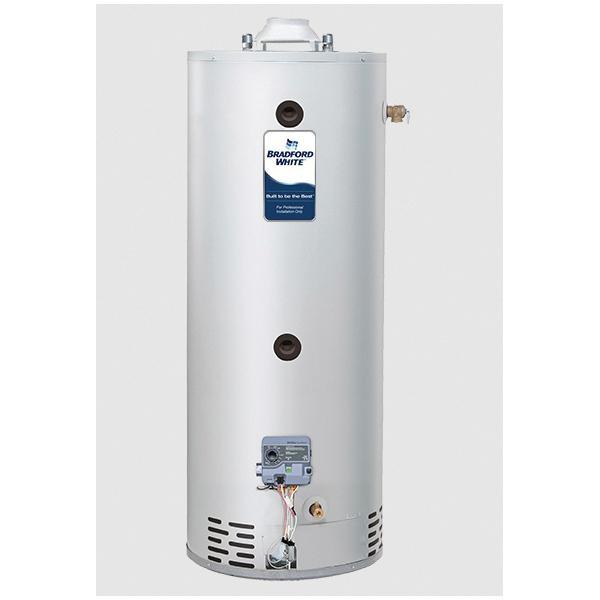

Bradford White Combi2® C-DW2-75T1 C-DW2-75T10BN Gas Water Heater System, 72 gal, 76000 Btu/hr, 22.3 kW, Natural Gas
- Manufacturer: Bradford White Corporation
- Brand Name: Bradford White®
- Part#: BRWCDW2-75T10BN
- MPN: C-DW2-75T10BN
- UPC: 671632591268
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
All gas water heaters are certified at 300 psi test pressure (2068 kPa) and 150 psi working pressure (1034 kPa). All potable water and heat exchanger connections are 3/4 in NPT (19 mm) on 11 in (203 mm) centers. All gas connections 1/2 in (13 mm). All models design certified by CSA international (formerly AGA/CGA), ANSI Z21.10.1 and peak performance-rated. Suitable for water (potable) heating and space heating. Toxic chemicals, such as those used for boiler treatment, shall never be introduced into the potable water side. The potable side of this unit may never be connected to any existing heating system or components previously used with a non-potable water heating appliance. The heat exchanger side of the unit may be used in space heating applications.
Bradford White® Combi2® Gas Water Heater System, Model: C-DW2-75T1, 72 gal Capacity, 76000 Btu/hr, 22.3 kW, 81 gph Recovery Rate, 4 in Vent, Atmospheric Vent, NPT Connection, 150 psi, 80 % Recovery Efficiency, Floor Mounting, Natural Gas Fuel, ScreenLok® Ignition System, Steel, Vitraglas® Enamel, Lead-Free, 140 deg F, 62-1/4 in H x 30-3/8 in D, Domestic/Import: Domestic, Additional Information: 3/4 in Water Connection, 1/2 in Gas Connection
| Additional Information | : | 3/4 in Water Connection, 1/2 in Gas Connection |
| BTU Rating | : | 76000 Btu/hr |
| Capacity | : | 72 gal |
| Connection Type | : | NPT |
| Dimensions | : | 62-1/4 in H x 30-3/8 in D |
| Domestic/Import | : | Domestic |
| Finish | : | Vitraglas® Enamel |
| Fuel Type | : | Natural Gas |
| Ignition System | : | ScreenLok® |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel |
| Model | : | C-DW2-75T1 |
| Mounting Type | : | Floor |
| Power Rating | : | 22.3 kW |
| Pressure Rating | : | 150 psi |
| Recovery Efficiency | : | 80 % |
| Recovery Rate | : | 81 gph |
| Temperature Rating | : | 140 deg F |
| Vent Size | : | 4 in |
| Vent Type | : | Atmospheric |
- WHITE-RODGERS™ electronic control exclusive to Bradford White®
- Two protective anode rods
- Hydrojet® total performance system
- Vitraglas® tank lining with Microban®
- 3/4 in front NPT supply and return connections
- 2 in non-CFC foam insulation
