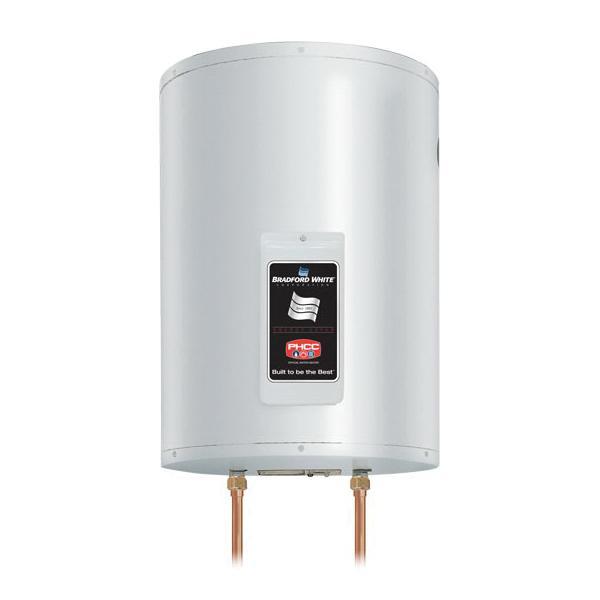

Bradford White® RE16WV6-1NAL-458 Residential Tank Electric Water Heater, 6 gal, 1 ph, 120 V
- Manufacturer: Bradford White Corporation
- Brand Name: Bradford White®
- Part#: BRWRE16WV6-1NAL-458
- MPN: RE16WV6-1NAL-458
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Bradford White® Residential Tank Electric Water Heater, 6 gal Capacity, 7 gph Flow Rate, 1 Elements, 1500 W Element Wattage, 120 V, 1 ph Phase, NPT Connection, 3/4 in Connection, 150 psi, Surface, Wall Hung Mounting, Fast Acting, Fully Automatic, Surface-Mounted Thermostat, Steel, 14 in Dia x 16-1/16 in H, Domestic/Import: Domestic, Screw-Type Immersion Element, Copper Element
| Capacity | : | 6 gal |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 14 in Dia x 16-1/16 in H |
| Domestic/Import | : | Domestic |
| Element Material | : | Copper |
| Element Type | : | Screw-Type Immersion |
| Element Wattage | : | 1500 W |
| Flow Rate | : | 7 gph |
| Material | : | Steel |
| Mounting Type | : | Surface, Wall Hung |
| Number of Elements | : | 1 |
| Phase | : | 1 ph |
| Pressure Rating | : | 150 psi |
| Thermostat Type | : | Fast Acting, Fully Automatic, Surface-Mounted |
| Voltage Rating | : | 120 V |
- Fully automatic controls
- Direct heat transfer with a single immersed element
- Vitraglas® lining
- 1 in non-cfc foam insulation
- Heavy-duty wall-mounting bracket
- Protective anode rod
- Temperature and pressure relief valve
