Weil-McLain® AQUAPLUS35 WMCAQUAPLUS35
  1. pin-int

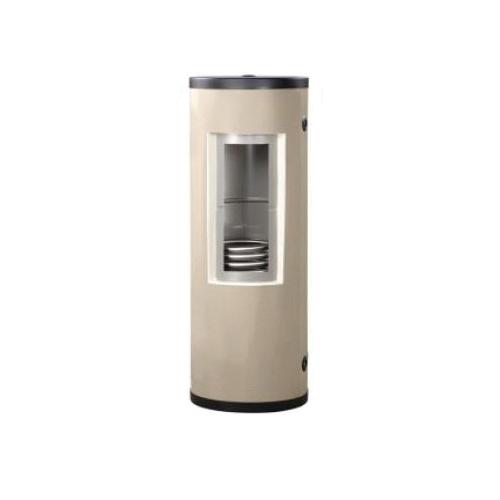

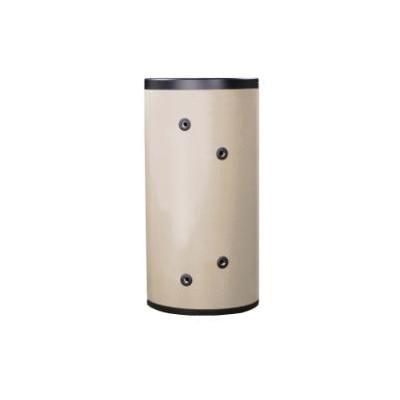

Weil-McLain® Aqua Plus 2 Series 35 AQUAPLUS35 Indirect Fired Water Heater, 35 gal, 2.4 VA, 24 VAC

Weil-McLain® Aqua Plus 2 Series 35 AQUAPLUS35 Indirect Fired Water Heater, 35 gal, 2.4 VA, 24 VAC

  • Manufacturer: Weil-McLain
  • Brand Name: Weil-McLain®
  • Part#: WMCAQUAPLUS35
  • MPN: AQUAPLUS35
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Weil-McLain® Indirect Fired Water Heater, Aqua Plus 2 Series, Model: 35, 35 gal Capacity, 2.4 VA, 8 gpm Flow Rate, 223 gph First Hour Delivery, 0.4 deg F/hr Standby Loss, 24 VAC, 60 Hz, NPT Connection, 150 psi, 1.6 ft Coil Head Loss, Digital Control, 3.8 ft-WC Heat Source Friction Loss, 150 psi Pressure Drop, 1.7 gal Heating Water Capacity, Stainless Steel, Pewter, 50 to 180 deg F, 21-7/8 in Dia x 36-3/8 in H, Additional Information: 3/4 in NPT Cold Water Inlet Connection, 1 in NPT Boiler Inlet/Outlet Connection, Foam Insulation

Additional Information      :      3/4 in NPT Cold Water Inlet Connection, 1 in NPT Boiler Inlet/Outlet Connection, Foam Insulation
Boiler Inlet Connection      :      1 in NPT
Boiler Outlet Connection      :      1 in NPT
Capacity      :      35 gal
Coil Head Loss      :      1.6 ft
Cold Water Inlet Connection      :      3/4 in NPT
Color      :      Pewter
Connection Type      :      NPT
Control Type      :      Digital
Diameter      :      21-7/8 in
Dimensions      :      21-7/8 in Dia x 36-3/8 in H
First Hour Delivery      :      223 gph
Flow Rate      :      8 gpm
Frequency Rating      :      60 Hz
Heat Source Friction Loss      :      3.8 ft-WC
Heating Water Capacity      :      1.7 gal
Height      :      36-3/8 in
Insulation Material      :      Foam
Material      :      Stainless Steel
Model      :      35
Power Rating      :      2.4 VA
Pressure Drop      :      150 psi
Pressure Rating      :      150 psi
Series      :      Aqua Plus 2 Series
Standby Loss      :      0.4 deg F/hr
Tank Capacity      :      35 gal
Tank Color      :      Pewter
Tank Material      :      316L Stainless Steel
Temperature Rating      :      50 to 180 deg F
Voltage Rating      :      24 VAC
  • 316L stainless steel tank and coil design
  • High output heat exchanger
  • Advanced digital control
  • Fully passivated and welded design - no anode rod needed
  • 2 in THK CFC-free foam insulation
  • 150 psi T&P relief valve included
  • Poly resin top and bottom caps
  • Leveling legs
