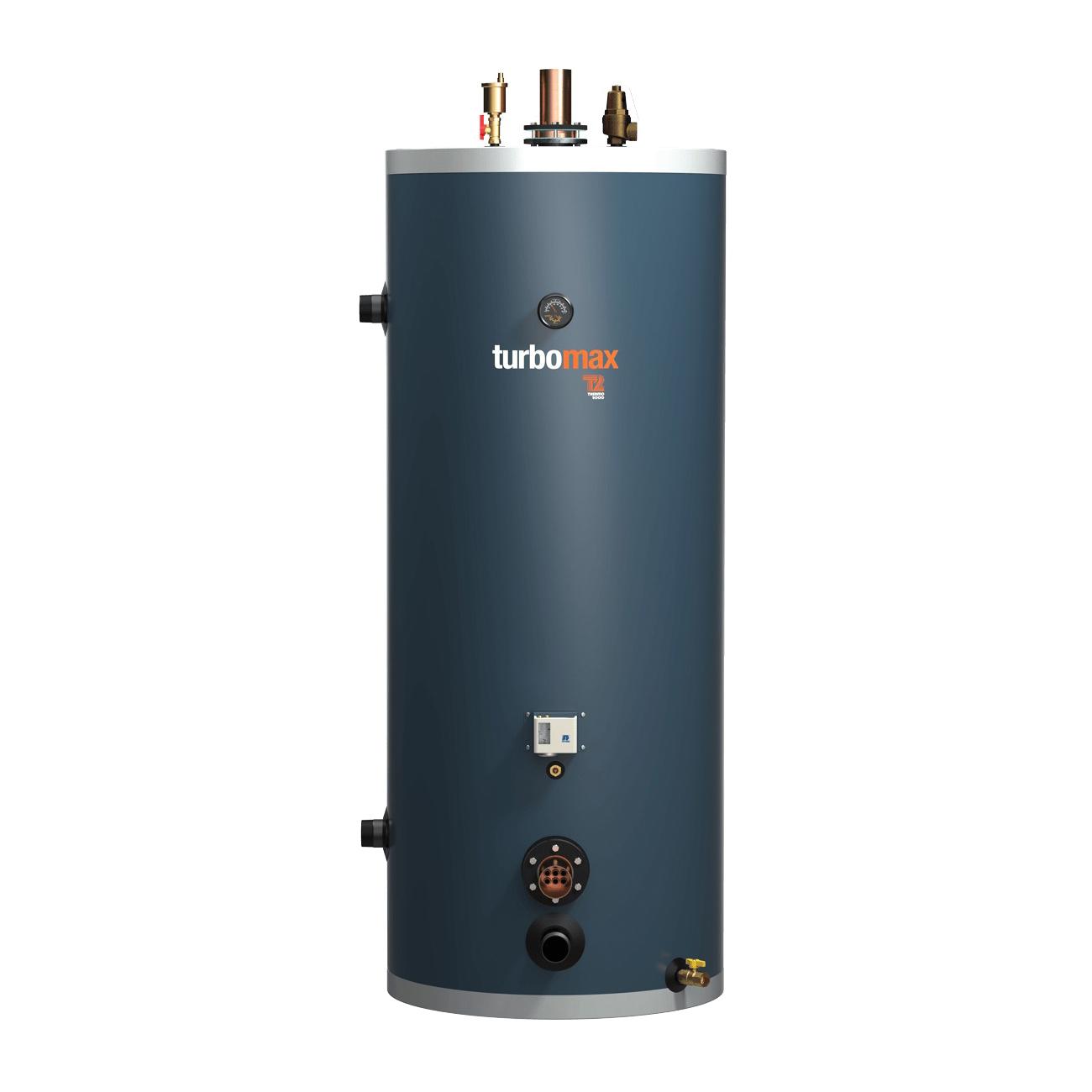

Thermo 2000 TURBOMAX120-9 Instantaneous Indirect Water Heater, 119 gal, 1165000 Btu/hr, 341 kW
- Manufacturer: Thermo 2000 Inc
- Brand Name: Thermo 2000
- Part#: TRXTURBOMAX120-9
- MPN: TURBOMAX120-9
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Turbomax, Thermo 2000's instantaneous indirect hot water heater, is the ideal solution for domestic water heating in residential, commercial and institutional applications. It instantly heats potable water upon demand - from 40 deg F to 140 deg F in less than 7 seconds. Ingenious! The TurboMax features an unmatched high thermal exchange capacity and provides exceptional high-quality hot water. With a lifespan of over 30 years, it is covered by a 15-year residential warranty and a 10-year commercial warranty.
Thermo 2000 Instantaneous Indirect Water Heater, 119 gal Capacity, 1165000 Btu/hr, 341 kW, 27 gpm Flow Rate, <1/2 deg F Standby Loss, 99 % Efficiency, Automatic Air Vent, 120 A, MNPT Connection, 200 psi, Floor Mounting, High Carbon Steel, Finish: Baked Epoxy Painted, Up to 200 deg F, 28-1/16 in Dia x 77-7/16 in H, Additional Information: 2 in Male Cuivre Domestic Water Connection, 58.9 sq-ft Heat Transfer Area
| Additional Information | : | 2 in Male Cuivre Domestic Water Connection, 58.9 sq-ft Heat Transfer Area |
| Amperage Rating | : | 120 A |
| BTU Rating | : | 1165000 Btu/hr |
| Capacity | : | 119 gal |
| Connection Type | : | MNPT |
| Dimensions | : | 28-1/16 in Dia x 77-7/16 in H |
| Efficiency | : | 99 % |
| Finish | : | Baked Epoxy Painted |
| Flow Rate | : | 27 gpm |
| Material | : | High Carbon Steel |
| Mounting Type | : | Floor |
| Power Rating | : | 341 kW |
| Pressure Rating | : | 200 psi |
| Standby Loss | : | <1/2 deg F |
| Temperature Rating | : | Up to 200 deg F |
| Vent Type | : | Automatic Air |
- Heating water supply
- Heating water return
- Domestic cold water
- Domestic hot water
- Pressure relief valve
- Temperature and pressure indicator
- Tank drain valve
- Immersion well
- Automatic air vent
- Adjustable feet support
- Additional connections
- 2" HFC-free polyurethane insulation
- Aquastat with adjustable temperature differential
Catalog
