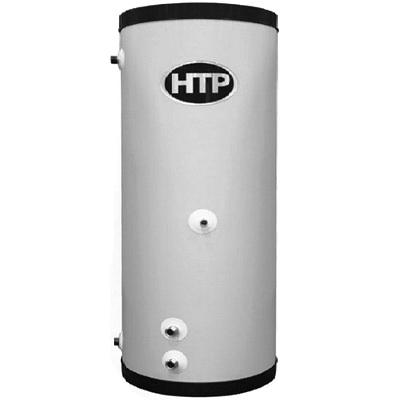

HTP SSU-80 Indirect Water Heater, 80 gal, 212000 Btu/hr
- Manufacturer: Ariston Group
- Brand Name: HTP
- Part#: HTPSSU-80
- MPN: SSU-80
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The SuperStor Ultra is a high-performance indirect water heater that can generate over 50% more hot water than many water heaters of a similar size. It has minimal heat loss, thanks to a 2 in THK environmentally safe water blown foam insulation. Use the SuperStor Ultra in conjunction with a HTP high-efficiency boiler to reduce operating costs even more.
HTP Indirect Water Heater, 80 gal Capacity, 212000 Btu/hr, 12 gpm Flow Rate, 440 gph First Hour Delivery, NPT Connection, 34 sq-ft Coil Heating Surface, 316L Stainless Steel, Lead-Free, 180 deg F, 72 in H x 23-1/4 in W
| BTU Rating | : | 212000 Btu/hr |
| Capacity | : | 80 gal |
| Coil Heating Surface | : | 34 sq-ft |
| Connection Type | : | NPT |
| Dimensions | : | 72 in H x 23-1/4 in W |
| First Hour Delivery | : | 440 gph |
| Flow Rate | : | 12 gpm |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | 316L Stainless Steel |
| Temperature Rating | : | 180 deg F |
- Super-insulated with approximately 2 in of environmentally safe, CFC-free, water-blown, extra thick foam insulation
- Allows less than 1/2 deg F per hour heat loss
- Outer jacket constructed of silver finished durable plastic for rust and impact resistance
- Stainless steel inlet and outlet connections for all models - side tapping's
- Internal bent hot water outlet tube extracts 5 to 7% more hot water from the top of the tank dome
- Stainless steel control well for accurate temperature measurement inside vessel
Instruction/Installation Manual
