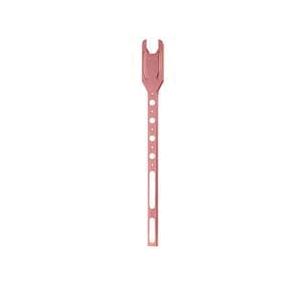

Sioux Chief 521-728 Carrier Bracket, Copper-Plated, For Use With: Pipe Supports and Flush Valves
- Manufacturer: Sioux Chief
- Brand Name: Sioux Chief
- Part#: SIO521-728
- MPN: 521-728
- UPC: 739236260840
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Sioux Chief 521-72 Series carrier brackets shall be used to support flush valve supply stub-out on commercial projects where wall-hung water closets are installed. Carrier bracket shall be copper-plated with two elongated slots located at the bottom of-the bracket for mounting upright on either side of-the carrier's stud bolts. Double hole opening at top shall fit 1 in CTS copper for soldering flush valve supply. Hole position shall provide 4-3/4 in side rough measurement from the carrier's center when attached to carrier unit. Bracket is designed to maintain 11-1/2 in above the toilet fixture. Oval slots shall allow bracket adjustability to obtain 17 to 19 in height from finished floor for ADA compliance.
Sioux Chief Carrier Bracket, Finish: Copper-Plated, 23-1/4 in Height, For Use With: Pipe Supports and Flush Valves
| Finish | : | Copper-Plated |
| Height | : | 23-1/4 in |
| Suitable For Use With | : | Pipe Supports and Flush Valves |
- Channel design extends the entire length of-the bracket for maximum strength and rigidity
- Supports water pipe for flush valve 26-1/2 in above floor and offsets stub-out at 4-1/2 in or 4-3/4 in from carrier center
Specification Sheet
