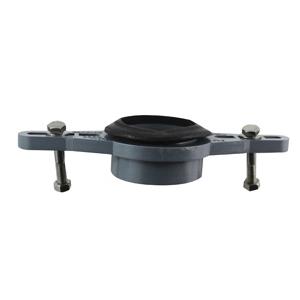

Canplas® 383663 FR-Pro Urinal Flange Kit, 2 in, Hub, PVC, Gray
- Manufacturer: Canplas
- Brand Name: Canplas®
- Part#: CPL383663
- MPN: 383663
- UPC: 662671380111
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Installed behind a urinal and connected to a 2 in PVC gray FR-Pro DWV piping system to provide access to the drainage system and provide a mounting means for the urinal. Mounting bracket allows for a 4 in, 5-1/2 in and 7 in bolt spacing adjustment. Comes complete with mounting hardware and installation instructions.
Canplas® FR-Pro Urinal Flange Kit, 2 in, Hub Connection, PVC, Finish: Gray, Bracket Mounting, 140 deg F, 8.11 in Length
| Connection Type | : | Hub |
| Finish | : | Gray |
| Length | : | 8.11 in |
| Material | : | PVC |
| Mounting Type | : | Bracket |
| Size | : | 2 in |
| Temperature Rating | : | 140 deg F |
- Injection molded-in non-toxic durable low flame and smoke-rated gray polyvinyl chloride
- Normally used in the drainage portion of-the DWV system only
- Flame-retardant, will not support combustion in the presence of an ignition source
- Use approved PVC primer and solvent cement to make PVC joints
- High chemical resistance to acids, alkalis, alcohols, halogens and other corrosive media
- The flange is reinforced with a cross
Specification Sheet
