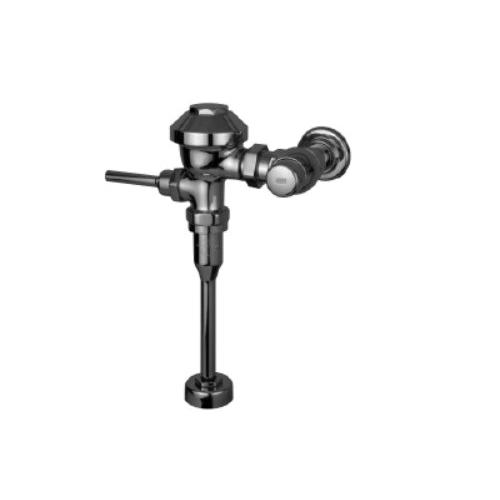

Zurn® AquaVantage® Z6003 Z6003AV-WS1 Exposed Flush Valve, 3/4 in Nominal, IPS, 25 to 80 psi, Brass Body
- Manufacturer: Zurn Elkay Water Solutions
- Brand Name: Zurn®
- Part#: ZRNZ6003AV-WS1
- MPN: Z6003AV-WS1
- UPC: 670240577244
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Manual flush valve Z6003AV come with Zurn® AquaVantage® exposed quiet diaphragm-type flush valve has a top spud connection for 3/4 in urinals. It is ADA compliant and come with a 3 years warranty. This toilet flush valve has 1 gpf which meets US federal standard for water conservation.
Zurn® AquaVantage® Exposed Flush Valve, Model: Z6003, IPS Connection, 3/4 in Nominal, 25 to 80 psi Pressure, Media: Water, Handle Actuator, 1 gpf Flush, Open Handle, Brass Body, Manual Operator, Wall Mounting, Chrome-Plated, Dimensions: 2-1/4 in L x 4-3/4 in W x 11-1/2 in H, Domestic/Import: Domestic
| Actuator Type | : | Handle |
| Body Material | : | Brass |
| Connection Type | : | IPS |
| Dimensions | : | 2-1/4 in L x 4-3/4 in W x 11-1/2 in H |
| Domestic/Import | : | Domestic |
| Finish | : | Chrome-Plated |
| Flush Rate | : | 1 gpf |
| Handle Type | : | Open |
| Media | : | Water |
| Model | : | Z6003 |
| Mounting Type | : | Wall |
| Nominal Size | : | 3/4 in |
| Operator Type | : | Manual |
| Pressure Rating | : | 25 to 80 psi |
- Proprietary dezincification-resistant low-lead brass alloy
- Control stop has internal siphon-guard protection and vandal-resistant stop cap, sweat solder kit, wall flange with set screw
- High back pressure vacuum breaker with one-piece hex coupling nut
- Chloramine-resistant Internal seals
- Adjustable tailpiece
- Spud coupling and flange for top spud connection
Instruction/Installation Manual
