Sloan® 3010505 SLN3010505
  1. pin-int

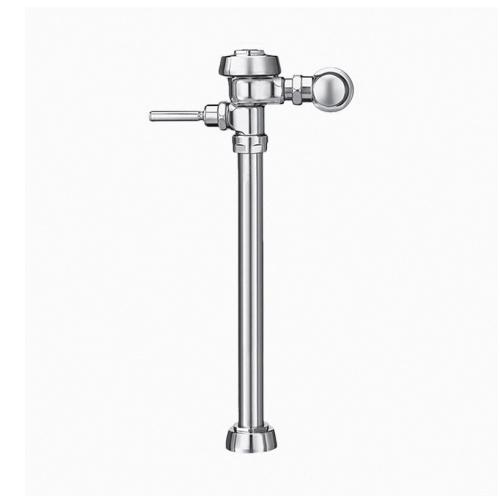

Sloan® Royal® 117 3010505 Service Sink Flushometer, 1 in Nominal, IPS, 15 to 80 psi, Semi-Red Brass Body

Sloan® Royal® 117 3010505 Service Sink Flushometer, 1 in Nominal, IPS, 15 to 80 psi, Semi-Red Brass Body

  • Manufacturer: Sloan Valve Company
  • Brand Name: Sloan®
  • Part#: SLN3010505
  • MPN: 3010505
  • UPC: 671254019546
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Sloan® Service Sink Flushometer, Model: 117, Royal® Collection, IPS Connection, 1 in Nominal, 15 to 80 psi Pressure, Manual Actuator, 6.5 gpf Flush, Non-Hold Open Lever Handle, Semi-Red Brass Body, Diaphragm Operator, Wall, Floor Mounting, Polished Chrome, Domestic/Import: Domestic

Actuator Type      :      Manual
Body Material      :      Semi-Red Brass
Collection      :      Royal®
Connection Type      :      IPS
Domestic/Import      :      Domestic
Finish      :      Polished Chrome
Flush Rate      :      6.5 gpf
Handle Type      :      Non-Hold Open Lever
Model      :      117
Mounting Type      :      Wall, Floor
Nominal Size      :      1 in
Operator Type      :      Diaphragm
Pressure Rating      :      15 to 80 psi
  • 1 in IPS screwdriver Bak-Chek® angle stop with free spinning vandal-resistant stop cap
  • Sweat solder adapter with cover tube and cast set screw wall flange
  • 1-1/2 in offset flush tube
  • Non-hold open handle, fixed metering bypass and no external volume adjustment to ensure water conservation
  • Diaphragm, handle packing and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance
  • ADA Compliant metal oscillating non-hold open handle
