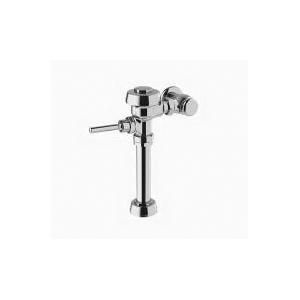

Sloan® Royal® Series 111-1.6-YO 3010007 Manual Water Closet Flushometer, 1 in Nominal, IPS, 15 to 80 psi
- Manufacturer: Sloan Valve Company
- Brand Name: Sloan®
- Part#: SLN3010007
- MPN: 3010007
- UPC: 671254017979
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Sloan® Manual Water Closet Flushometer, Royal® Series, Model: 111-1.6-YO, IPS Connection, 1 in Nominal, 15 to 80 psi Pressure, 1.6 gpf Flush, Non-Hold-Open Handle, Semi-Red Brass Body, Polished Chrome
| Body Material | : | Semi-Red Brass |
| Connection Type | : | IPS |
| Finish | : | Polished Chrome |
| Flush Rate | : | 1.6 gpf |
| Handle Type | : | Non-Hold-Open |
| Model | : | 111-1.6-YO |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 15 to 80 psi |
| Series | : | Royal® Series |
- PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
- 1 in IPS screwdriver Bak-Chek® angle stop
- High back pressure vacuum breaker flush connection with 1-piece bottom hex coupling nut
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Non-hold open handle, fixed metering bypass and no external volume adjustment to ensure water conservation
- Diaphragm, handle packing and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance
- Adjustable tailpiece
- ADA compliant metal oscillating non-hold-open handle
Instruction/Installation Manual
Video Link
