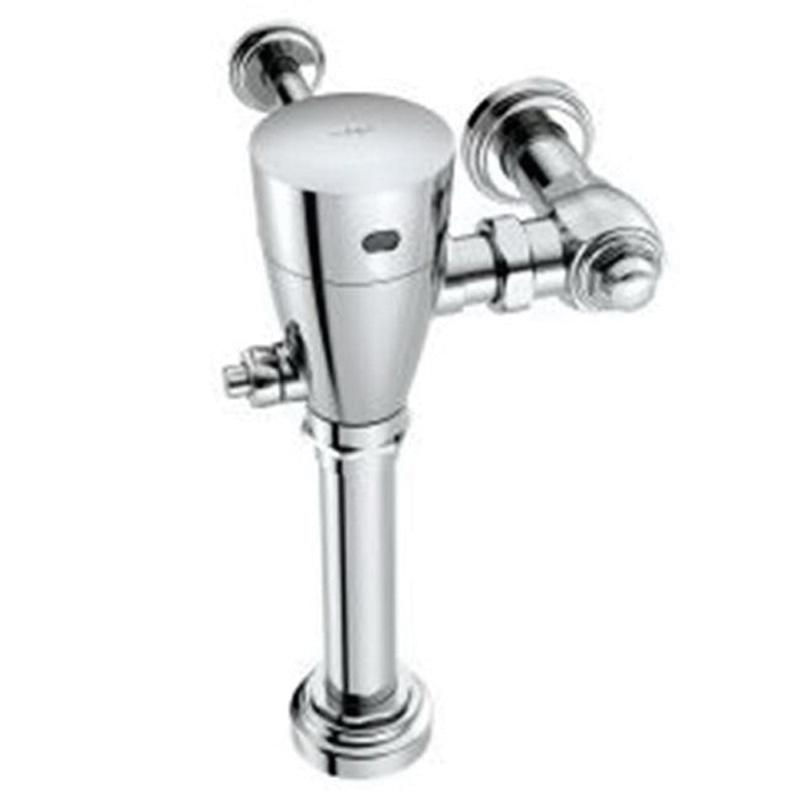

Moen® Commercial M-POWER™ 8310ACDF16 Urinal Flush Valve, 1 in Nominal, IPS, 20 to 125 psi, Brass Body
- Manufacturer: Moen Incorporated
- Brand Name: MOEN® COMMERCIAL
- Part#: MON8310ACDF16
- MPN: 8310ACDF16
- UPC: 026508205969
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Moen® Commercial line of M-POWER™ sensor operated products provide heavy use facilities efficient and hygienic solutions to maintain sanitary environments and reduce maintenance. With all metal construction and vandal-resistant features, M-POWER™ products are backed by a best in class 5 year warranty.
Moen® Commercial Urinal Flush Valve, M-POWER™ Collection, IPS Connection, 1 in Nominal, 20 to 125 psi Pressure, Electronic Actuator, 11-1/2 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, 1.63 gpf Flush, Brass Body, AccuSet™ Piston Operator, Chrome-Plated, Domestic/Import: Domestic/Import
| Actuator Type | : | Electronic |
| Body Material | : | Brass |
| Collection | : | M-POWER™ |
| Connection Type | : | IPS |
| Domestic/Import | : | Domestic/Import |
| Finish | : | Chrome-Plated |
| Flush Rate | : | 1.63 gpf |
| Inlet to Outlet Length | : | 11-1/2 in |
| Nominal Size | : | 1 in |
| Operator Type | : | AccuSet™ Piston |
| Pressure Rating | : | 20 to 125 psi |
| Top to Inlet Center | : | 3-1/4 in |
- AccuSet™ piston technology delivers virtually maintenance-free precise flush volume, with a stainless steel self-cleaning filter to protect against clogs or damage
- Durable cast brass body construction with chrome finish
- Mechanical override
- Sensor activated exposed water closet flushometer with brass angle stop valve
- Chloramine-resistant seals
- High back pressure vacuum breaker
- Self-cleaning AccuSet™ piston flush technology
- Adjustable infrared sensor range from 17 to 36 in
- Vandal-resistant angle stop and double O-ring connections
Instruction/Installation Manual
