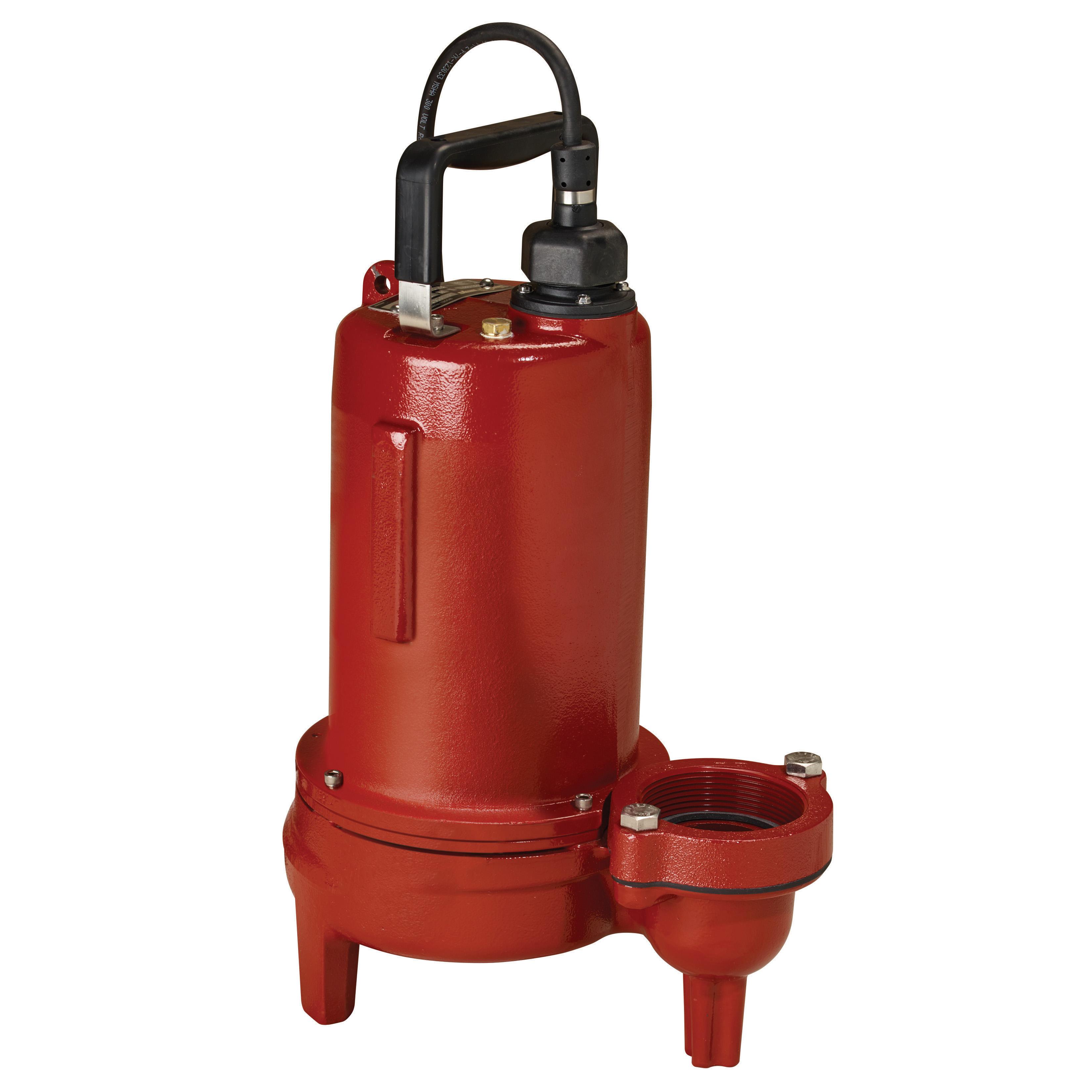

Liberty Pumps® LE70 Series LE71M3 Sewage Pump, 115 V, 12 A, 60 Hz, 3/4 hp, 144 gpm, Iron
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: LIBLE71M3
- MPN: LE71M3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Liberty's LE70 Series is a 3/4 hp sewage pump with 2 in solids-handling capability. Constructed of heavy cast iron with a tough epoxy powder coat finish, stainless steel fasteners and rotor shaft the LE70 is designed for durability. Its Quick-connect cord design allows for easy interchange of power cords in 10, 25 and 35 ft lengths.
Liberty Pumps® Sewage Pump, LE70 Series, 115 V, 12 A, 60 Hz Frequency, HP Rating: 3/4 hp, 1725 rpm Speed, 144 gpm Flow Rate, 1 ph, 3 in Discharge, 10 ft Cord Length, Maximum Feet of Head: 28 ft, 140 deg F, Cast Iron Impeller, Dimensions: 18.9 in H x 12.5 in W, Iron
| Amperage Rating | : | 12 A |
| Cord Length | : | 10 ft |
| Dimensions | : | 18.9 in H x 12.5 in W |
| Discharge Size | : | 3 in |
| Flow Rate | : | 144 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Impeller Material | : | Cast Iron |
| Material | : | Iron |
| Maximum Feet of Head | : | 28 ft |
| Phase | : | 1 ph |
| Series | : | LE70 Series |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 115 V |
- SJTW (1 ph) or SEOOW (3 ph) power cord
- Rugged two-vane, semi-open cast iron impellers
- Cast iron housings and volute with all stainless and brass fasteners, 416 stainless steel rotor shaft
- Oil-filled, hermetically sealed motors
- Built-in thermal protection on 1 ph models
- 2 or 3 in flanged discharge
- Permanently lubricated upper and lower ball bearings, unitized shaft seals, 2 in solids handling
- Single float mechanical level control with series plug for manual bypass operation standard on 1 ph automatic models
- Adjustable pumping range
