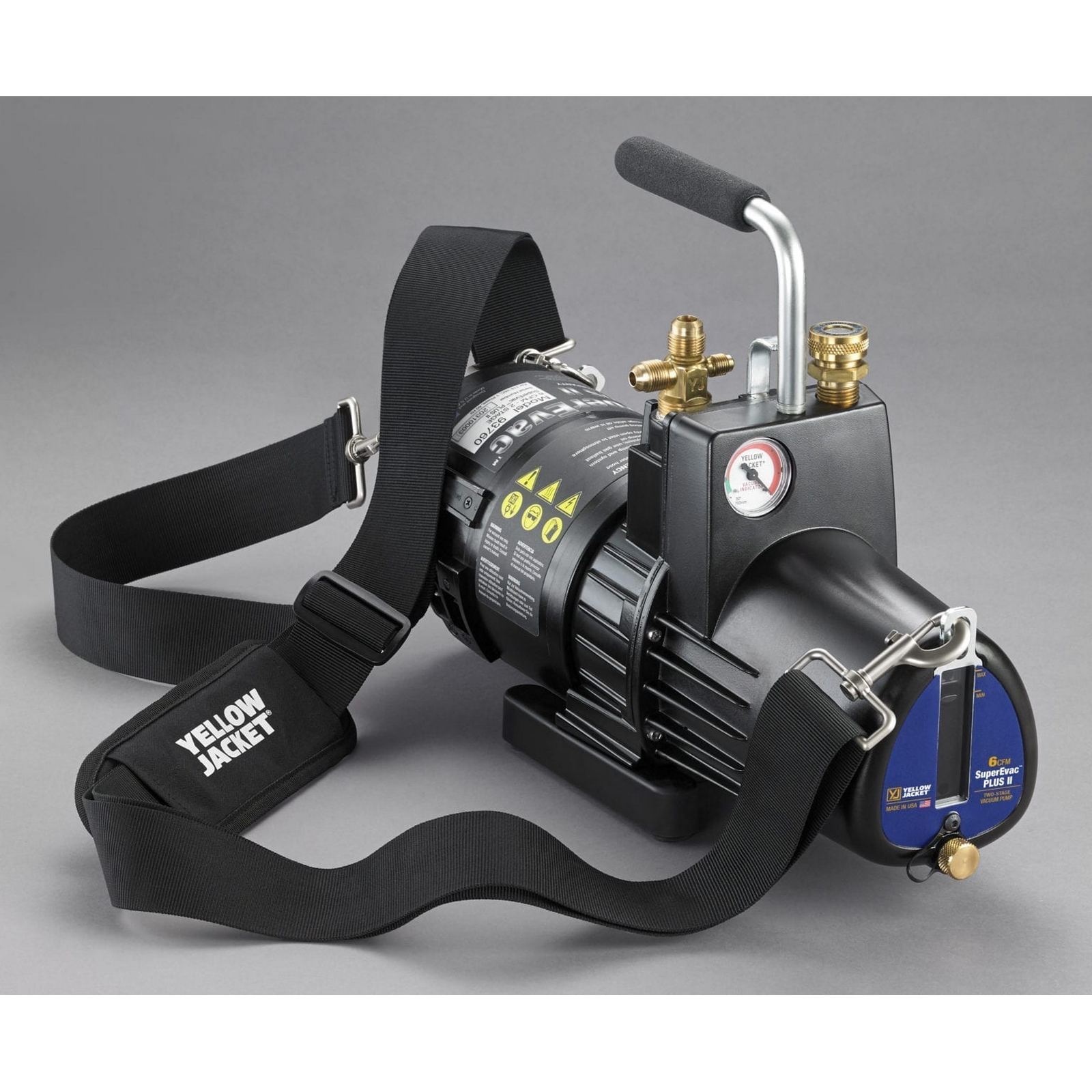

Yellow Jacket® SuperEvac® PLUS II 93783 Vacuum Pump, 100-127 V/220-240 V, 1/2 hp, 1/2 in, 3/8 in, 1/4 in, 8 cfm
- Manufacturer: Ritchie Engineering Company, Inc
- Brand Name: Yellow Jacket®
- Part#: YJT93783
- MPN: 93783
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The brushless DC (BLDC) motor incorporated in the next generation YELLOW JACKET® SuperEvac® PLUS II vacuum pump provides key advantages over existing AC technology vacuum pumps. High-torque and high-efficiency define the ultimate performance in the most reliable vacuum pump. Able to function in extreme low voltage conditions and field rated to 15 um, the SuperEvac® PLUS II is always ready. The easy-to-carry, lightweight design.
Yellow Jacket® SuperEvac® PLUS II Vacuum Pump, 100-127 V/220-240 V, 1/2 hp, 8 cfm Flow Rate, Connection Size: 1/2 in, 3/8 in, 1/4 in, 28 oz Oil, BLDC Motor, EU Plug, 9 ft 10 in Cord Length, 17-1/2 in Overall Length, 6 in Overall Width, 11-1/2 in Overall Depth, Additional Information: Male Flared Intake Connection Type, EU Plug
| Additional Information | : | Male Flared Intake Connection Type, EU Plug |
| Connection Size | : | 1/2 in, 3/8 in, 1/4 in |
| Cord Length | : | 9 ft 10 in |
| Flow Rate | : | 8 cfm |
| HP Rating | : | 1/2 hp |
| Motor Type | : | BLDC |
| Oil Capacity | : | 28 oz |
| Overall Depth | : | 11-1/2 in |
| Overall Length | : | 17-1/2 in |
| Overall Width | : | 6 in |
| Plug Type | : | EU Plug |
| Voltage Rating | : | 100-127 V/220-240 V |
- Designed for use with A2L systems
- Isolation valve for oil changes without losing vacuum in the system
- Gas ballast valve keeps oil cleaner, longer during evacuation
- Internal intake check valve to help prevent oil backup into the system and to maintain vacuum during a power failure
- Intake filter screen keeps damaging particles from entering the pump
- Heavy-duty rotors and bearings
- Built-in vacuum gauge
- Wide mouth oil reservoir port for easier, cleaner filling
- Doubles as a pump exhaust - threaded to attach a garden hose for exhausting to a remote location
- Large brass oil drain for easy access to fast oil changes
- Downward angled oil sump to remove contaminants usually trapped in other pump designs
- Non-sparking switch for A2L compliance
- Locking, low-profile IEC connector with 9 ft10 in (3 m) power cord to prevent accidental removal
- Heavy-duty steel handle
- Lift hook for hoisting pump to rooftops
- IPX4 rating - resistant to water splashes from any direction
- High-torque means power is always there on demand
- High-efficiency means less mechanical and electrical stress and long life
- Easily handles supply voltage variations, especially low voltage conditions
- Starts and operates in extreme temperature conditions, especially low temperatures
