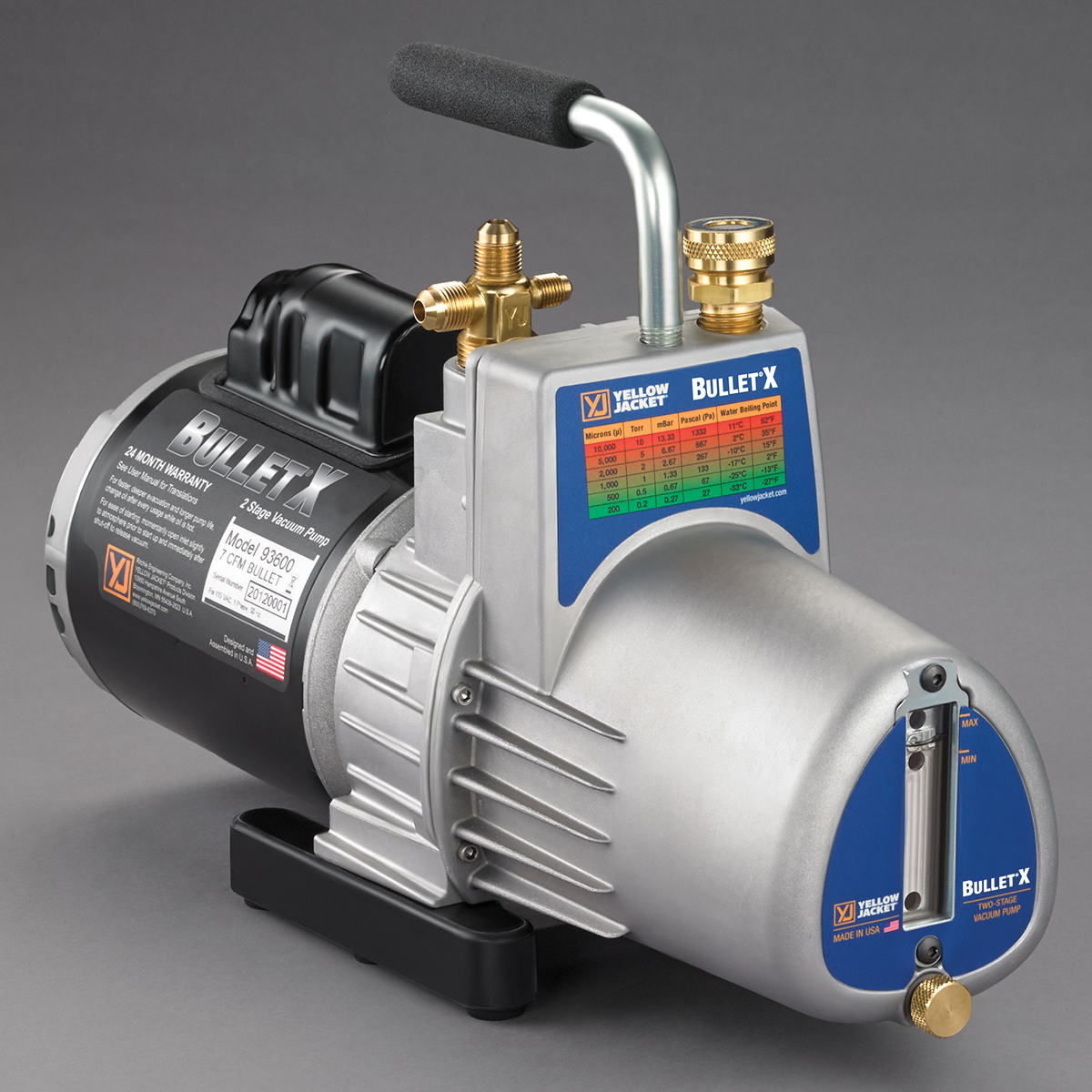

Yellow Jacket® BULLET®X 93610 Vacuum Pump, 115/230 V, 1/2 hp, 1/4 in, 3/8 in, 3/8 in, 7 cfm

Yellow Jacket® BULLET®X 93610 Vacuum Pump, 115/230 V, 1/2 hp, 1/4 in, 3/8 in, 3/8 in, 7 cfm

  • Manufacturer: Ritchie Engineering Company, Inc
  • Brand Name: Yellow Jacket®
  • Part#: YJT93610
  • MPN: 93610
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Wide mouth oil reservoir port for easier, cleaner filling. The YELLOW JACKET® BULLET®X vacuum pump is a two-stage rotary vane oil-sealed 7 cfm pump that pulls down to 25 um or better.

Yellow Jacket® BULLET®X Vacuum Pump, 115/230 V, 1/2 hp, 7 cfm Flow Rate, Connection Size: 1/4 in, 3/8 in, 3/8 in, 28 oz Oil, EU/UK Plug, 6 ft Cord Length, 16-1/4 in Overall Length, 6 in Overall Width, 11-1/2 in Overall Depth, Additional Information: 1725 rpm Speed Rating, 2-Stage, 50/60 Hz Frequency Rating, 1 ph Phase, EU/UK Plug

Additional Information      :      1725 rpm Speed Rating, 2-Stage, 50/60 Hz Frequency Rating, 1 ph Phase, EU/UK Plug
Connection Size      :      1/4 in, 3/8 in, 3/8 in
Cord Length      :      6 ft
Flow Rate      :      7 cfm
HP Rating      :      1/2 hp
Oil Capacity      :      28 oz
Overall Depth      :      11-1/2 in
Overall Length      :      16-1/4 in
Overall Width      :      6 in
Plug Type      :      EU/UK Plug
Voltage Rating      :      115/230 V
  • Wide mouth oil reservoir port for easier, cleaner filling
  • Doubles as pump exhaust, threaded to attach garden hose for exhausting to remote location
  • Large oil sight glass for easy monitoring of oil level
  • Large brass oil drain for easy access to fast oil changes
  • Internal intake check valve prevents oil backup into the system during a power failure
  • Intake filter screen keeps damaging particles from entering the pump
  • Heavy-duty rotors and bearings
  • Heavy-duty steel handle for well-balanced carrying
  • Tethered port caps stay with the pump
  • Made in the USA
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Yellow_Jacket_93610_Catalog.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Yellow_Jacket_93610_Owners_User_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Yellow_Jacket_93610_Specification_Sheet.pdf
  • linkVideo Link 1 https://fast.wistia.net/embed/iframe/gwosbfqity
  • linkVideo Link https://fast.wistia.net/embed/iframe/ul36vhjp86
