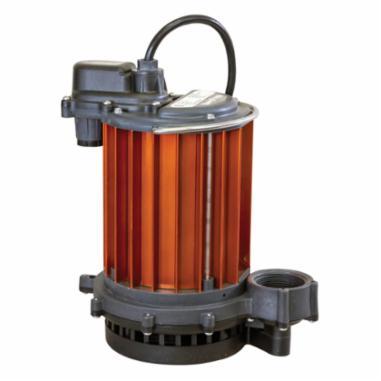

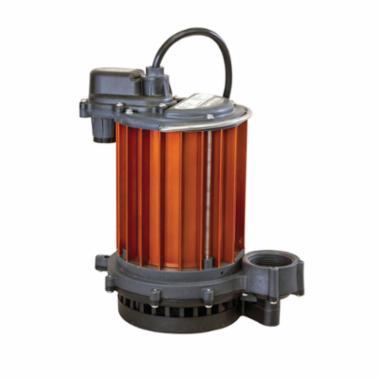

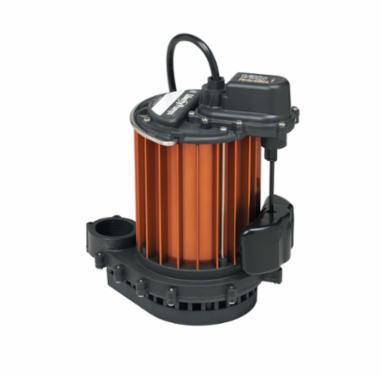

Liberty Pumps® 230 230 Manual Submersible Sump Pump, 115 V, 1/3 hp, 37 gpm, Aluminum
- Manufacturer: Liberty Pumps
- Brand Name: Liberty Pumps®
- Part#: LIB230
- MPN: 230
- UPC: 671812002300
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Cool running and efficient, the 230 series features a deep finned powder-coated aluminum motor housing, polypropylene base and vortex-style impeller. Topped off with a quick-disconnect power cord and Liberty's VMF switch (model237) the 230 series offers a superior value in a 1/3 hp pump.
Liberty Pumps® Manual Submersible Sump Pump, Series: 230 Series, Model: 230, 115 V, 60 Hz, 1/3 hp, 3450 rpm, 37 gpm Flow Rate, 1 ph Phase, 1-1/2 in Discharge, 10 ft Cord Length, 140 deg F, Aluminum, 9.6 in L x 9.6 in W x 10.5 in H, Additional Information: FNPT Discharge, Manual Operation
| Additional Information | : | FNPT Discharge, Manual Operation |
| Cord Length | : | 10 ft |
| Dimensions | : | 9.6 in L x 9.6 in W x 10.5 in H |
| Discharge Size | : | 1-1/2 in |
| Flow Rate | : | 37 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Material | : | Aluminum |
| Model | : | 230 |
| Phase | : | 1 ph |
| Series | : | 230 Series |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 115 V |
- Vortex-style impeller permits clog-free passage of solids
- Polypropylene and powder-coated aluminum construction
- Stainless steel rotor shaft
- Stainless steel fasteners
- Oil-filled, hermetically dealed motors with thermal overload protection
- Permanently sealed and lubricated bearings
- Quick-connect power cord
- Manual model
Instruction/Installation Manual
Video Link
