Liberty Pumps® LEH102M3-2 LIBLEH102M3-2
  1. pin-int

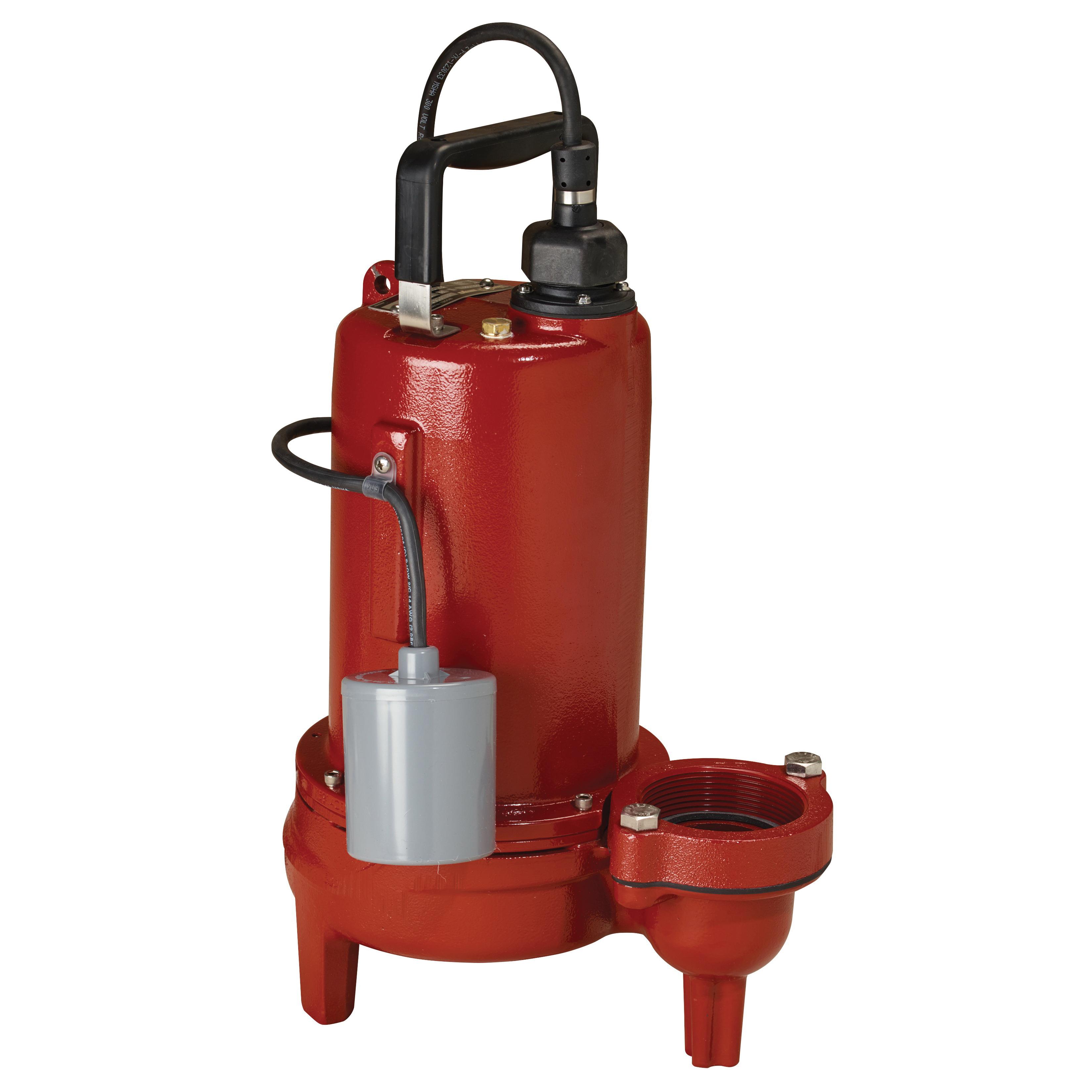

Liberty Pumps® LEH100 Series LEH102M3-2 High-Head Submersible Effluent Pump, 230 V, 12 A, Cast Iron

Liberty Pumps® LEH100 Series LEH102M3-2 High-Head Submersible Effluent Pump, 230 V, 12 A, Cast Iron

  • Manufacturer: Liberty Pumps
  • Brand Name: Liberty Pumps®
  • Part#: LIBLEH102M3-2
  • MPN: LEH102M3-2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The LEH100 by Liberty is a high head 2 in solids handling sewage pump. Built on the same platform as the LE100 Series, the LEH100 features all heavy cast ironhousings, stainless steel fasteners and Liberty's quick-connect power cord design. The LEH100has a maximum head of 53 ft and is backed by Liberty's 3 years warranty.

Liberty Pumps® High-Head Submersible Effluent Pump, Series: LEH100 Series, 230 V, 12 A, 1 ph, 3 in Discharge, 25 ft Cord, 140 deg F, Cast Iron Impeller, Cast Iron

Amperage Rating      :      12 A
Cord Size      :      25 ft
Discharge Size      :      3 in
Impeller Material      :      Cast Iron
Material      :      Cast Iron
Phase      :      1 ph
Series      :      LEH100 Series
Temperature Rating      :      140 deg F
Voltage Rating      :      230 V
  • Rugged two vane, semi-open cast iron impellers
  • Cast iron housings and volute with all stainless-steel and brass fasteners
  • 17-4 PH® stainless-steel shaft
  • Oil-filled, hermetically sealed motors
  • Built-in thermal protection on 1 ph models
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seals
  • Single float mechanical level control with series plug for manual bypass operation standard on 1 ph automatic models
  • Adjustable pumping range
  • Quick-connect 10 ft standard power cord allows replacement of cord in seconds without breaking seals to motor
