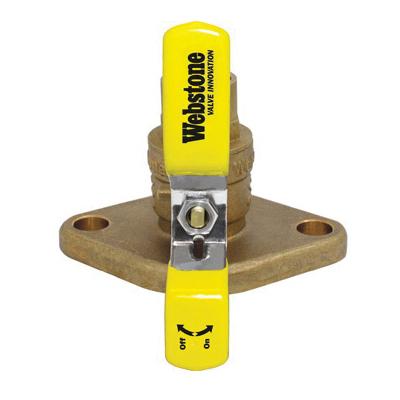

Webstone 5040 Series H-50404 Isolator Ball Valve With Adjustable Packaging Gland, 1 in Nominal, C x Flanged, Brass
- Manufacturer: NIBCO Inc
- Brand Name: Webstone
- Part#: WBS50404
- MPN: H-50404
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
These valves have revolutionized the installation of circulator pumps. Our original isolator uni-flange ball valve design has evolved into the largest flanged ball valve program in the industry today.
Webstone Isolator Ball Valve With Adjustable Packaging Gland, 5040 Series, 1 in Nominal, C x Flanged Connection, Lever Handle Operator, 600 psi, 100 to 350 deg F, Brass, Steel Handle, Brass Packing, PTFE Seal, PTFE Seat, Brass Stem, 4-1/8 in W, Contains Lead
| Connection Type | : | C x Flanged |
| Dimensions | : | 4-1/8 in W |
| Handle Material | : | Steel |
| Lead-Free/Contains Lead | : | Contains Lead |
| Material | : | Brass |
| Nominal Size | : | 1 in |
| Operator Type | : | Lever Handle |
| Packing Material | : | Brass |
| Pressure Rating | : | 600 psi |
| Seal Material | : | PTFE |
| Seat Material | : | PTFE |
| Series | : | 5040 Series |
| Stem Material | : | Brass |
| Temperature Rating | : | 100 to 350 deg F |
- Conical inlet to minimize turbulence
- Fits virtually any circulator pump
- Prevents electrolysis
- Eliminates galvanic corrosion
