Liberty Pumps® LSG202A LIBLSG202A
  1. pin-int

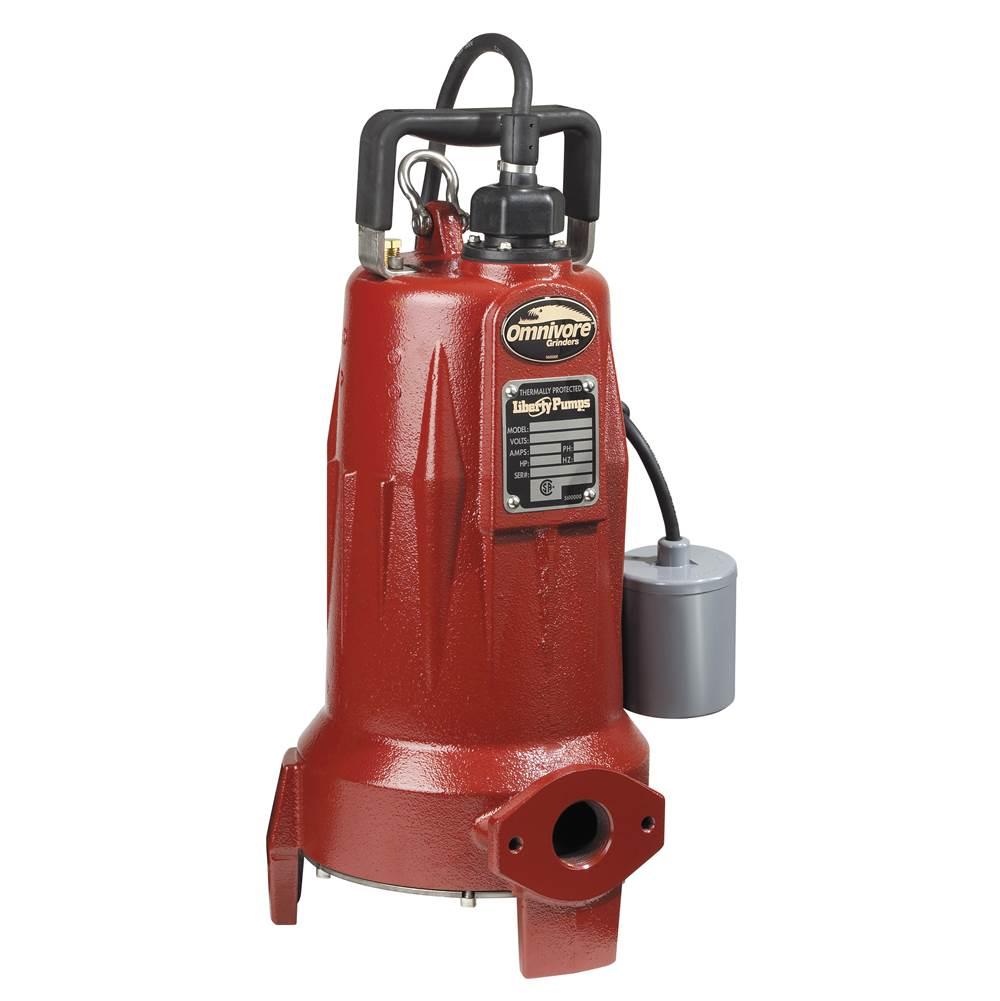

Liberty Pumps® Omnivore® LSG202A Submersible Grinder Pump, 208/230 V, 15 A, 2 hp, 3450 rpm Speed, Iron, Powder-Coated

Liberty Pumps® Omnivore® LSG202A Submersible Grinder Pump, 208/230 V, 15 A, 2 hp, 3450 rpm Speed, Iron, Powder-Coated

  • Manufacturer: Liberty Pumps
  • Brand Name: Liberty Pumps®
  • Part#: LIBLSG202A
  • MPN: LSG202A
  • UPC: 671812110173
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Liberty's LSG-Series Omnivore® grinders meet the demanding needs of commercial and residential sewage applications where difficult solids handling ability is crucial. The LSG features patented V-Slice® cutter technology. This industry leading design, made of 440 hardened stainless steel, shears rags, jeans, wipes, diapers, sanitary napkins and other debris into a fine slurry. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring pressure pumping of waste. Other features include a one-piece cast iron volute and motor housing, quick connect power cord for field serviceability and a 3 years limited warranty from last bill-of-sale. Complete factory pre-assembled systems are available with multiple basin sizes and control panel options.

Liberty Pumps® Omnivore® Submersible Grinder Pump, 208/230 V, 15 A, 60 Hz, 2 hp, 3450 rpm, 50 gpm Flow Rate, 1 ph Phase, 1-1/4 in Discharge, 221 deg F, 19-1/2 in H x 9-1/2 in W, Maximum Feet of Head: 10 ft, 316 Stainless Steel Impeller, Ball Bearing, Iron, Finish: Powder-Coated

Amperage Rating      :      15 A
Bearing Type      :      Ball
Dimensions      :      19-1/2 in H x 9-1/2 in W
Discharge Size      :      1-1/4 in
Finish      :      Powder-Coated
Flow Rate      :      50 gpm
Frequency Rating      :      60 Hz
HP Rating      :      2 hp
Impeller Material      :      316 Stainless Steel
Material      :      Iron
Maximum Feet of Head      :      10 ft
Phase      :      1 ph
Speed Rating      :      3450 rpm
Temperature Rating      :      221 deg F
Voltage Rating      :      208/230 V
  • Patented V-Slice® cutter technology
  • One-piece uni body casting
  • Quick connect power cord
  • 300 Series stainless steel rotor shaft
  • 2 hp, heavy-duty motor, oil filled, thermally protected
  • Upper and lower ball bearings
  • Dual seals - upper seal is unitized durable silicon carbide, lower seal is Viton® double-lip (lower seal ensures that all debris is kept away from upper seal)
  • Motor windings insulated to Class B (130 deg C)
  • Advanced V-Slice® cutter technology made of hardened 440 stainless steel - Rockwell C 58
  • Back vanes on impeller and spiraled bottom plate for superior solids clearing
  • Clog-free volute design
  • Designed for maximum heat dissipation and cool motor operating temperatures
  • Solid state starting circuit - no mechanical relay coil
  • Quick connect 25 ft power cord
  • Piggyback plug with wide angle float switch (on automatic model) eliminates need for expensive panel
