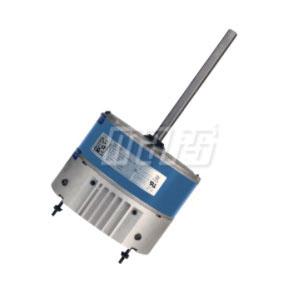

Mars® 10874 Condenser Fan Motor, 208 to 230 VAC, 1/8 to 1/3 hp, 825 rpm, 1075 rpm Speed, 1 ph -Phase, 50 Hz, 60 Hz
- Manufacturer: Mars
- Brand Name: Mars®
- Part#: MRR10874
- MPN: 10874
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Mars® Condenser Fan Motor, 208 to 230 VAC, 1/8 to 1/3 hp, 825 rpm, 1075 rpm, 1 ph Phase, 50 Hz, 60 Hz, Closed Air Over Motor Enclosure, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Reversible Rotation, 1 Speed, Ball Bearing, Stud Mounting, B Insulation Class, -32 to 55 deg C, 5.5 in Dia x 4.33 in L
| Bearing Type | : | Ball |
| Dimensions | : | 5.5 in Dia x 4.33 in L |
| Frame Size | : | 48 |
| Frequency Rating | : | 50 Hz, 60 Hz |
| HP Rating | : | 1/8 to 1/3 hp |
| Insulation Class | : | B |
| Motor Enclosure Type | : | Closed Air Over |
| Mounting Type | : | Stud |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation Type | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 6-1/2 in L |
| Speed Rating | : | 825 rpm, 1075 rpm |
| Temperature Rating | : | -32 to 55 deg C |
| Voltage Rating | : | 208 to 230 VAC |
- Electronical thermal protection
- Azure is an electronically controlled motor (ECM) that replaces a multitude of applications
- These motors are simple to install
- The Azure condenser fan motors connect the same as a standard PSC condenser fan motor, but without the capacitor
- Just plug the motor into a 115 V power source (using supplied programming cable) and select 1 of 4 operating modes and then install the motor
- This is a replaceable device that is much less expensive to replace than replacing the entire motor in the event of a power surge
- Water slinger on shaft
