Mission™ FLEX-SEAL® MR06 88 Unshielded Sewer Coupling, 8 in, Cast Iron/Plastic, Iron/Plastic, Natural
- Manufacturer: Mission Rubber Company
- Brand Name: Mission™
- Part#: MRBMR06 88
- MPN: MR06 88
- UPC: 016846144181
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Flexible, unshielded sewer couplings connect concrete pipe to clay or Schedule 40 plastic pipe. For non-pressure, gravity flow applications only. Recommended for underground installations, although some jurisdictions will allow use above ground. Easy to install and reuse.
Mission™ Unshielded Sewer Coupling, MR06 Series, 8 in Fitting, Cast Iron/Plastic Connection, Material Standard: ASTM A240, A240M-06, C425-04, C1173-06, Iron/Plastic, Natural, 8.4 in ID x 10.5 in OD x 6 in W, Domestic/Import: Domestic, Additional Information: 5/16 in Hex Screw
| Additional Information | : | 5/16 in Hex Screw |
| Color | : | Natural |
| Connection Type | : | Cast Iron/Plastic |
| Dimensions | : | 8.4 in ID x 10.5 in OD x 6 in W |
| Domestic/Import | : | Domestic |
| Fitting Size | : | 8 in |
| Material Standard | : | ASTM A240, A240M-06, C425-04, C1173-06 |
| Material | : | Iron/Plastic |
| Series | : | MR06 Series |
- MR06 series couplings are used to join concrete to cast iron or plastic
- Mission™ Flex-Seal® unshielded coupling is a flexible sewer coupling designed to connect similar and dissimilar pipe materials and sizes

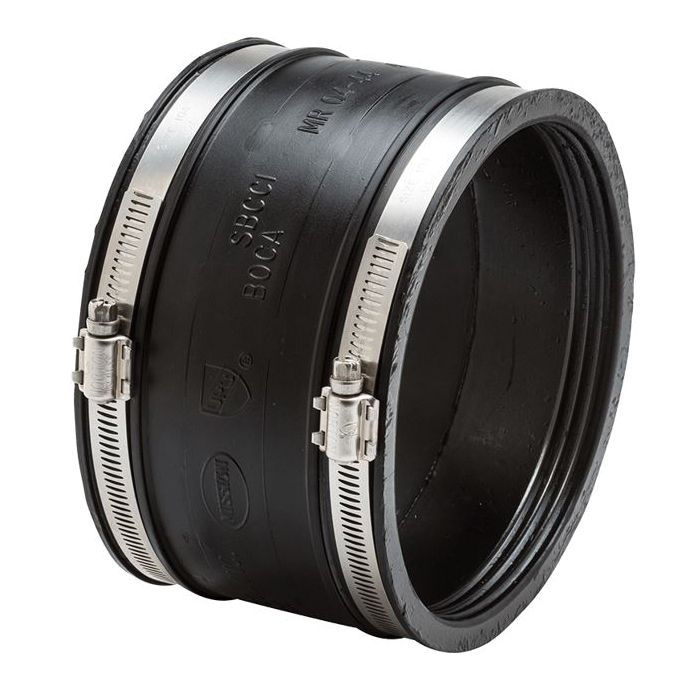

- Coupling consists of two (2) 300 series stainless steel worm drive clamps over a molded one-piece elastomeric sealing gasket
- Stainless steel clamps provide a positive seal when properly tightened to 60 in-lb of torque
- Axially slotted clamps enable bands to tighten independently to accommodate variances in the outside diameters of the pipe to be joined, ensuring a watertight, leak-proof and root-proof seal
- Sealing O-rings are installed under each sealing clamp to prevent pipe slippage and create a more positive seal
- Use of 300 series stainless steel components are highly effective in a variety of environments such as marine applications, poorly aerated or moist soils, contaminated ground conditions (particularly industrial fill sites) and where the ground water contains chloride, sulfates or bicarbonates
- Synthetic rubbers permit a substantial degree of distortion without change in basic physical resistance, unlike other manufacturers thermoplastic coupling materials
- Molded synthetic rubber gasket is strong, durable and resilient to ultraviolet rays, ozone, fungus growth, natural erosive properties and normal sewer gases
- More pliable and easier to install in cold weather applications than an elastomeric PVC gasket
- All Flex-Seal® unshielded couplings are designed to be installed with a pre-set torque wrench calibrated to 60 in-lb maximum to accommodate the 300 series stainless steel 5/16 in hex head screw
- Easy to install and reuse
