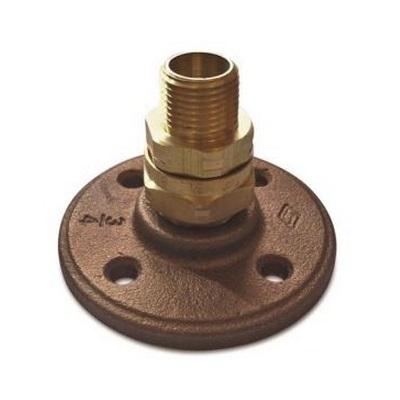

Gastite® XR3 Series XR3TRM-11-CB-12 Termination Fitting With Bronze Flange, 3/4 in, 3/4 in, NPT, Brass
- Manufacturer: Smiths Group plc
- Brand Name: Gastite®
- Part#: GSTXR3TRM-11-CB-12
- MPN: XR3TRM-11-CB-12
- UPC: 084088902109
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
XR3 fittings are designed with a patented feature that contours the metal shield. This creates electrical continuity throughout the system. The XR3 fitting requires minimal torque for easy fitting installation.
Gastite® Termination Fitting With Bronze Flange, XR3 Series, Size: 3/4 in, NPT Connection, 3/4 in Connection, 25 psi Pressure, Brass, -40 to 160 deg F, Additional Information: 1 in Flange Thread, 1-9/16 in Hex Nut, 1-3/8 in Hex Fitting, 4 in OD Flange
| Additional Information | : | 1 in Flange Thread, 1-9/16 in Hex Nut, 1-3/8 in Hex Fitting, 4 in OD Flange |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Material | : | Brass |
| Pressure Rating | : | 25 psi |
| Series | : | XR3 Series |
| Size | : | 3/4 in |
| Temperature Rating | : | -40 to 160 deg F |
- Metal lock for enhanced continuity
- Tool-less flare design, no special tools are required
- Metal-to-metal seal, with no split rings, O-rings or gaskets
- Self-guiding assembly to ensure a perfectly even flare
- Exclusive, patented Jacket-Lock™ fitting eliminates exposed stainless steel beyond the nut
- All components are fully reuseable
