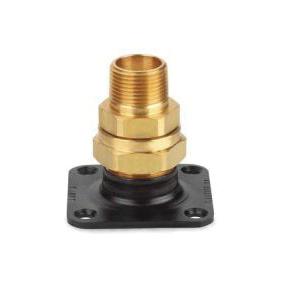

Gastite® XR2 Series XR2TRM-11-12 Pipe Closet Flange, 3/4 in, NPT, Brass
- Manufacturer: Smiths Group plc
- Brand Name: Gastite®
- Part#: GSTXR2TRM-11-12
- MPN: XR2TRM-11-12
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Gastite® Pipe Closet Flange, XR2 Series, NPT Connection, 3/4 in Connection, 5 psi Pressure, Brass, -40 to 160 deg F, Dimensions: 2.625 in OD x 2.7 in L
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 2.625 in OD x 2.7 in L |
| Material | : | Brass |
| Pressure Rating | : | 5 psi |
| Series | : | XR2 Series |
| Temperature Rating | : | -40 to 160 deg F |
- Tool less flare design no special tools are required
- Metal-to-metal seal with no split rings and O-rings or gaskets
- Self-guiding assembly to ensure a perfectly even flare
- Exclusive, patented jacket-lock fitting eliminates exposed stainless steel beyond the nut
- Fully reusable fitting
- Termination fittings create a fixed point stub-out on a wall or floor surface
- Termination bracket fittings provide a secure attachment point for key-valves and as an alternate termination point
Specification Sheet
