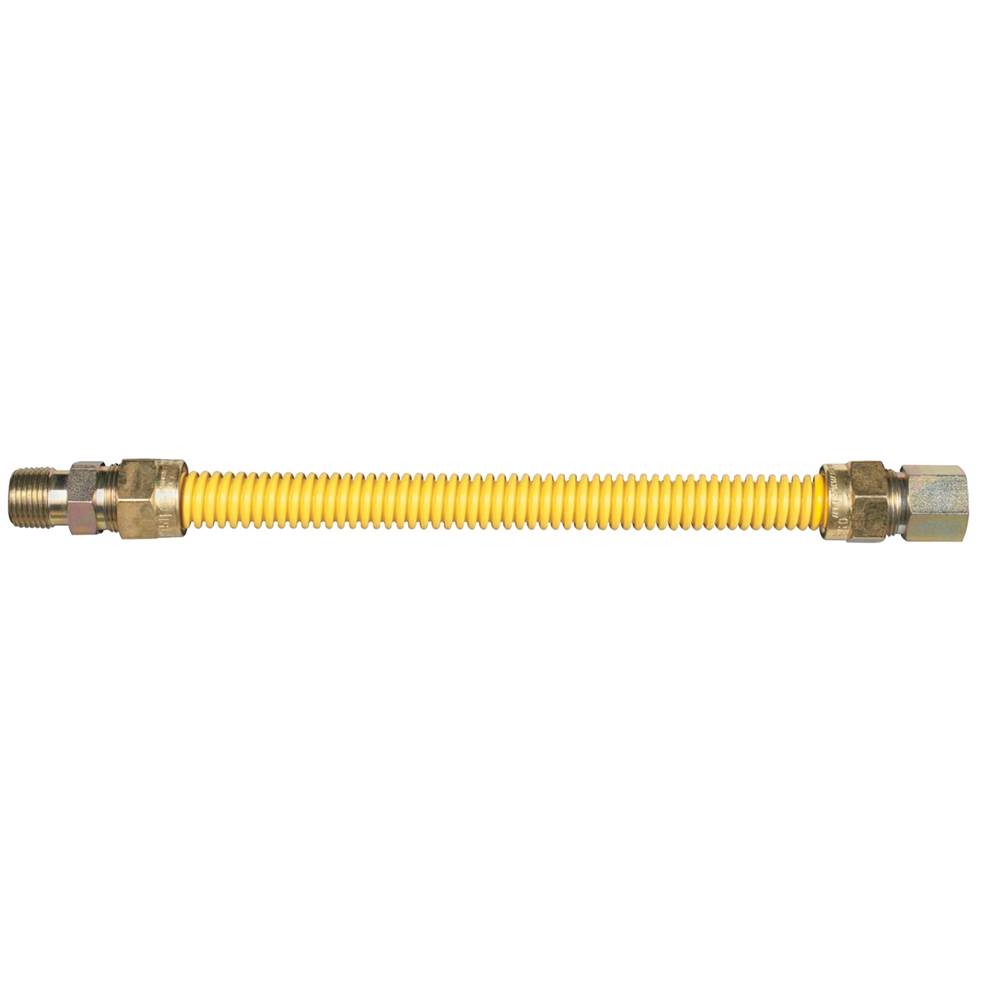

Dormont® SafetyShield® 30C Series 30C-3142-30 Flexible Gas Appliance Connector, 1/2 x 3/4 in, 30 in L, 1/2 in ID
- Manufacturer: Watts Water Technologies
- Brand Name: Dormont®
- Part#: DOR30C-3142-30
- MPN: 30C-3142-30
- UPC: 662447147856
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
This 5/8 in OD, 1/2 in ID, durable, corrosion-resistant stainless steel gas connector is configured with 1/2 in MIP x 3/4 in FIP is 30 in length. Designed with safety in mind, this CSA approved gas connector is yellow-coated. The yellow coating is an industry recognized color for gas lines and provides extra corrosion protection from accidental contact with harmful chemicals that may be found in household products. It is commonly used for the installation of home appliances such as gas ranges and furnaces.
Dormont® SafetyShield® Flexible Gas Appliance Connector, 30C Series, MIP x FIP Connection, 1/2 x 3/4 in Fitting, 136000 Btu/hr, 217600 Btu/hr, 30 in Length, 1/2 in Inside Diameter, 5/8 in Outside Diameter, 0.5 psi, 304 Stainless Steel, Yellow, Finish: Polymer-Coated, -40 to 150 deg F
| BTU Rating | : | 136000 Btu/hr, 217600 Btu/hr |
| Color | : | Yellow |
| Connection Type | : | MIP x FIP |
| Finish | : | Polymer-Coated |
| Fitting Size | : | 1/2 x 3/4 in |
| Inside Diameter | : | 1/2 in |
| Length | : | 30 in |
| Material | : | 304 Stainless Steel |
| Outside Diameter | : | 5/8 in |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Pressure Rating | : | 0.5 psi |
| Series | : | 30C Series |
| Temperature Rating | : | -40 to 150 deg F |
- Designed and certified by CSA for indoor and outdoor use
- Premium antimicrobial coating for increased safety, durability and longevity
- 100% factory leak tested
- Improved UV, humidity and corrosion protection
- Enhanced flame and smoke-resistance consistent coverage provides protection along the entire length of the connector
