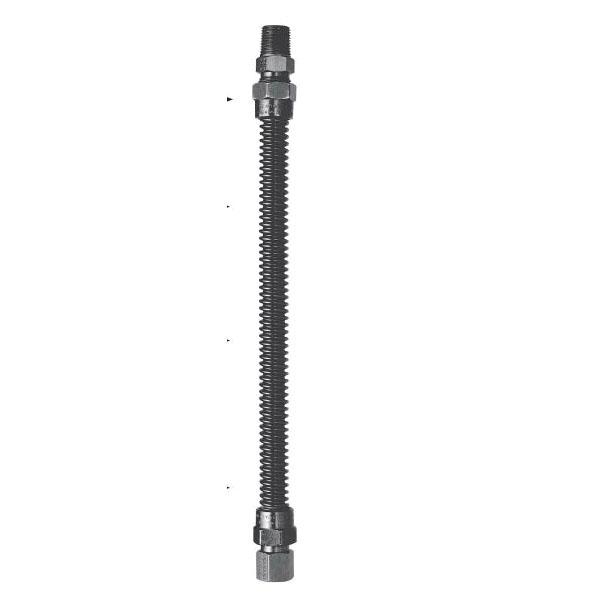

Dormont® 10A Series 10A-3122-30 Gas Connector, 1/2 x 3/8 in, 30 in L, 1/4 in ID, 3/8 in OD, MIP x FIP
- Manufacturer: Watts Water Technologies
- Brand Name: Dormont®
- Part#: DOR10A-3122-30
- MPN: 10A-3122-30
- UPC: 662447084809
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
This 3/8 in OD, 1/4 in ID, durable, corrosion-resistant stainless steel gas connector is configured with 1/2 in MIP x 3/8 in FIP adapters. With a durable pre-applied high-temperature black coating, the LV® gas connector provides a low visibility gas connector installation. This CSA approved gas connector features a premium anti-microbial coating to inhibit bacteria growth, improve corrosion and UV protection and enhance flame and smoke resistance. It is commonly used for the installation of home appliances such as gas log sets, fireplace inserts and free-standing fireplaces.
Dormont® Gas Connector, 10A Series, MIP x FIP Connection, 1/2 x 3/8 in Fitting, 36400 Btu/hr, 58240 Btu/hr, 30 in Length, 1/4 in Inside Diameter, 3/8 in Outside Diameter, 0.5 psi, 304 Stainless Steel, Finish: Black, -40 to 350 deg F, Domestic/Import: Domestic
| BTU Rating | : | 36400 Btu/hr, 58240 Btu/hr |
| Connection Type | : | MIP x FIP |
| Domestic/Import | : | Domestic |
| Finish | : | Black |
| Fitting Size | : | 1/2 x 3/8 in |
| Inside Diameter | : | 1/4 in |
| Length | : | 30 in |
| Material | : | 304 Stainless Steel |
| Outside Diameter | : | 3/8 in |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Pressure Rating | : | 0.5 psi |
| Series | : | 10A Series |
| Temperature Rating | : | -40 to 350 deg F |
- Designed and certified by CSA for indoor and outdoor use
- 100% factory leak tested
- Premium anti-microbial coating for increased safety, durability and longevity
Instruction/Installation Manual
