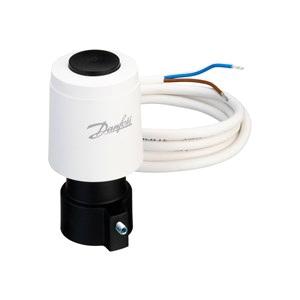

Danfoss 088H3111 Electric Valve Actuator, 24 VAC
- Manufacturer: Danfoss
- Brand Name: Danfoss
- Part#: DFS088H3111
- MPN: 088H3111
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The TWA (thermal wax actuator) is a 24 VAC/DC thermo-hydraulic actuator used with on/off controls to allow flow through the system. When the TWA is energized, an internal wax element gradually heats up opening or closing the valve. TWA can be wired with Danfoss RET-B, RET-24 or FH-WS low voltage thermostats.
Danfoss TWA Electric Valve Actuator, 24 VAC, Power Rating: 2 W, 50/60 Hz, IP41 Enclosure, 8.7 psi, 3 min Timing, Suitable For Use With: RA 2000 and RA-C Valve, 32 to 140 deg F
| Enclosure Type | : | IP41 |
| Frequency Rating | : | 50/60 Hz |
| Power Rating | : | 2 W |
| Pressure Rating | : | 8.7 psi |
| Suitable For Use With | : | RA 2000 and RA-C Valve |
| Temperature Rating | : | 32 to 140 deg F |
| Timing | : | 3 min |
| Voltage Rating | : | 24 VAC |
- Slow acting wax element eliminates water hammer associated with motorized valves
- Silent operation
- Visual position indicator to show the open or closed position of the valve
- Low power consumption
- Compact size
