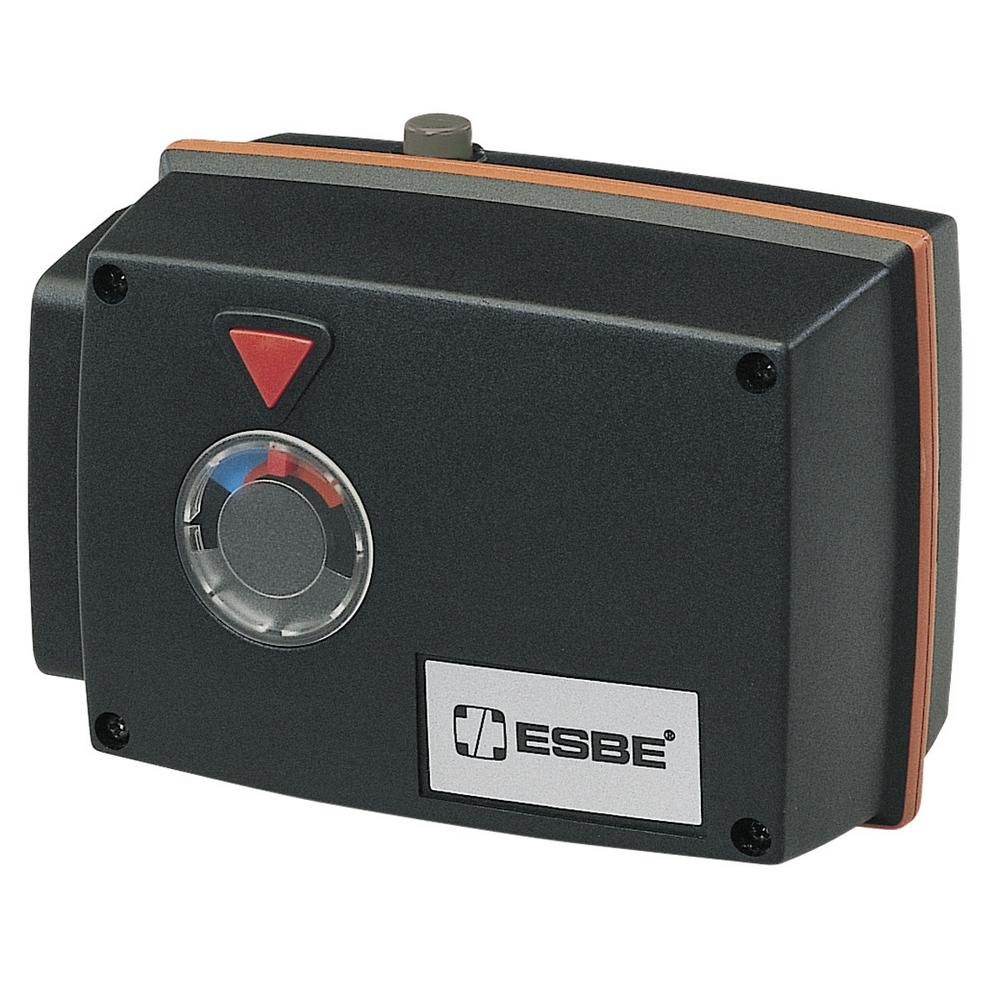

Danfoss 90 Series 065F8959 Electronic Motor Actuator With Auxiliary Switch, 24 V

The ESBE 24 V electronic series of motors are direct mounted actuators that rotate ESBE 3 and 4-way rotary valves for hydronic heating and cooling systems. The Series 90 actuator provides additional torque compared to the Series 60 and ARA Series of actuators and can be installed on all ESBE 3 and 4-way rotary valves, in sizes from 1/2 to 6 in valves. The Series 90 motors also have linkage kits available capable of adapting to Viessmann, Honeywell, Centra DR/ZR, Landis and Staefa and TA VTR styles of valves.

Danfoss Electronic Motor Actuator With Auxiliary Switch, 90 Series, 24 V, 50/60 Hz, IP54, NEMA 13 Enclosure, 135 in-lb Output Torque, 100 s Timing, 3-Point Floating Signal, For Use With: ESBE Rotary Valves, 5 to 131 deg F

• ESBE control motor series are of a compact design
• Direct-mount actuators
• Easy manual override of motor actuator
• Adjustable rotation between 30 and 180 deg with internal cams
• Floating three-point and proportional signal operation
• Several motors with an auxiliary contact switch activated through an adjustable cam

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Danfoss_065F8959_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Danfoss_065F8959_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Danfoss_065F8959_Specification_Sheet.pdf
