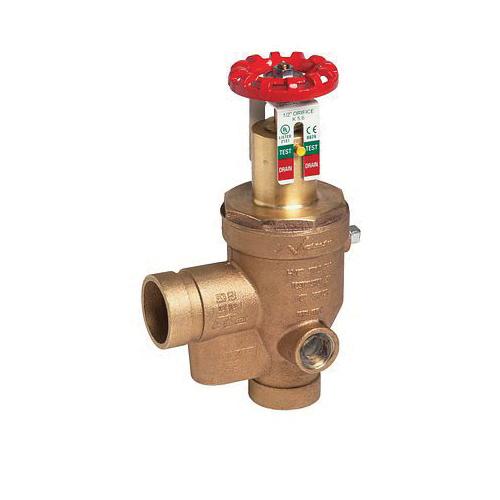

Victaulic® TestMaster™ 720 Series V014720SG0 Alarm Test Module, 1-1/2 in, Grooved, Bronze
- Manufacturer: Victaulic Company
- Brand Name: Victaulic®
- Part#: VIC720SG-112
- MPN: V014720SG0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Victaulic® TestMaster™ Alarm Test Module, 720 Series, 1-1/2 in Nominal, Grooved Connection, 300 psi, Hand Wheel Actuator, 3-3/4 in Inlet to Outlet Length, 6.51 in Full Drain, 5.47 in Closed Top to Inlet Center, Bronze Body, EPDM Seat, Nitrile Seal, Copper Alloy/Carbon Steel Trim, Malleable Iron Handle, Polycarbonate Softgoods, 1.9 in OD
| Actuator Type | : | Hand Wheel |
| Body Material | : | Bronze |
| Connection Type | : | Grooved |
| Dimensions | : | 1.9 in OD |
| Handle Material | : | Malleable Iron |
| Inlet to Outlet Length | : | 3-3/4 in |
| Nominal Size | : | 1-1/2 in |
| Pressure Rating | : | 300 psi |
| Seal Material | : | Nitrile |
| Seat Material | : | EPDM |
| Series | : | 720 Series |
| Softgoods Material | : | Polycarbonate |
| Top to Inlet Center | : | 6.51 in Full Drain, 5.47 in Closed |
| Trim Material | : | Copper Alloy/Carbon Steel |
- Provides a test port and a drain port within the same unit
