JENKINS® 2342J-212 JEN2342J-G-212
  1. pin-int

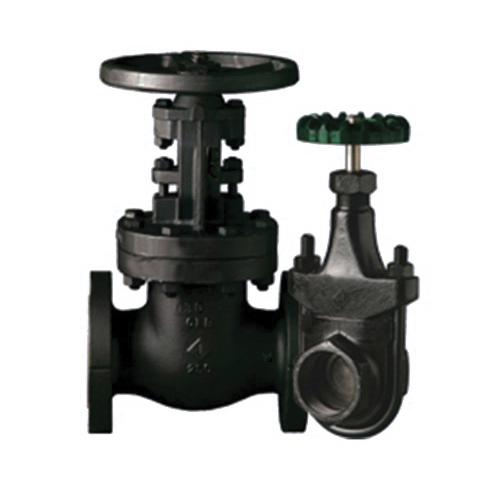

JENKINS® 2342J Series 2342J-212 Globe Valve, 2-1/2 in, Flanged, Iron, 200 psi, 125 psi

JENKINS® 2342J Series 2342J-212 Globe Valve, 2-1/2 in, Flanged, Iron, 200 psi, 125 psi

  • Manufacturer: Crane Co
  • Brand Name: JENKINS®
  • Part#: JEN2342J-G-212
  • MPN: 2342J-212
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

JENKINS® cast-iron gates and globe valves have been providing North American industries with superior performance since 1864.

JENKINS® Globe Valve, 2342J Series, 2-1/2 in Nominal, Flanged Connection, 200 psi, 125 psi, Pressure Class: 125 lb, Iron Body, Bronze Seat, Bronze Stem, Wheel Operator, -20 to 450 deg F, Material Standard: ASME B16.1, ASME B16.10, ASME B1.20.1, ASME B16.42, 8-1/2 in W

Body Material      :      Iron
Connection Type      :      Flanged
Dimensions      :      8-1/2 in W
Material Standard      :      ASME B16.1, ASME B16.10, ASME B1.20.1, ASME B16.42
Nominal Size      :      2-1/2 in
Operator Type      :      Wheel
Pressure Class      :      125 lb
Pressure Rating      :      200 psi, 125 psi
Seat Material      :      Bronze
Series      :      2342J Series
Stem Material      :      Bronze
Temperature Rating      :      -20 to 450 deg F
  • Fully-rated to ASME and MSS-SP standards
  • Integral yoke bonnet with upper bronze bushing provides for centering of internal parts
  • Non-galling two piece packing gland
  • Valves are provided with a back seat
  • Renewable - regrindable screwed in seat ring
  • Bottom guided disc
  • Manganese bronze stem
  • Non-asbestos packing and gaskets
  • Solid bronze disc 6 in and smaller
