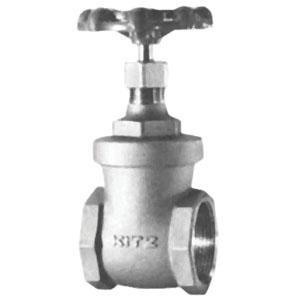

KITZ 27 Series 27-114 Gate Valve, 1-1/4 in, FNPT, Bronze, 125 psi, 200 psi
- Manufacturer: KITZ Corporation
- Brand Name: KITZ
- Part#: KTZ27-114
- MPN: 27-114
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
KITZ Gate Valve, 27 Series, 1-1/4 in Nominal, FNPT Connection, 125 psi, 200 psi, Pressure Class: 125 lb, Gas, Oil, Steam, Water Media, 2.4 in Inlet to Outlet Length, 4.65 in Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc, Graphite Packing, Zinc Handle, Handwheel Operator, 101 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, B86
| Body Material | : | Bronze |
| Connection Type | : | FNPT |
| Disc Material | : | Bronze |
| Flow Coefficient (Cv) | : | 101 Cv |
| Handle Material | : | Zinc |
| Inlet to Outlet Length | : | 2.4 in |
| Material Standard | : | ASTM B62, B86 |
| Media | : | Gas, Oil, Steam, Water |
| Nominal Size | : | 1-1/4 in |
| Operator Type | : | Handwheel |
| Packing Material | : | Graphite |
| Pressure Class | : | 125 lb |
| Pressure Rating | : | 125 psi, 200 psi |
| Series | : | 27 Series |
| Stem Material | : | Brass |
| Temperature Rating | : | 406 deg F |
| Top to Inlet Center | : | 4.65 in |
- Non-rising stem
- Screw-over bonnet
- Solid wedge disc
