WATTS® Maxi-Flo® LF600 Series LF600 1/2 Silent Check Valve, 1/2 in, FNPT, Lead-Free, Brass
- Manufacturer: Watts Water Technologies
- Brand Name: WATTS®
- Part#: WTS600-12
- MPN: LF600 1/2
- UPC: 098268432855
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

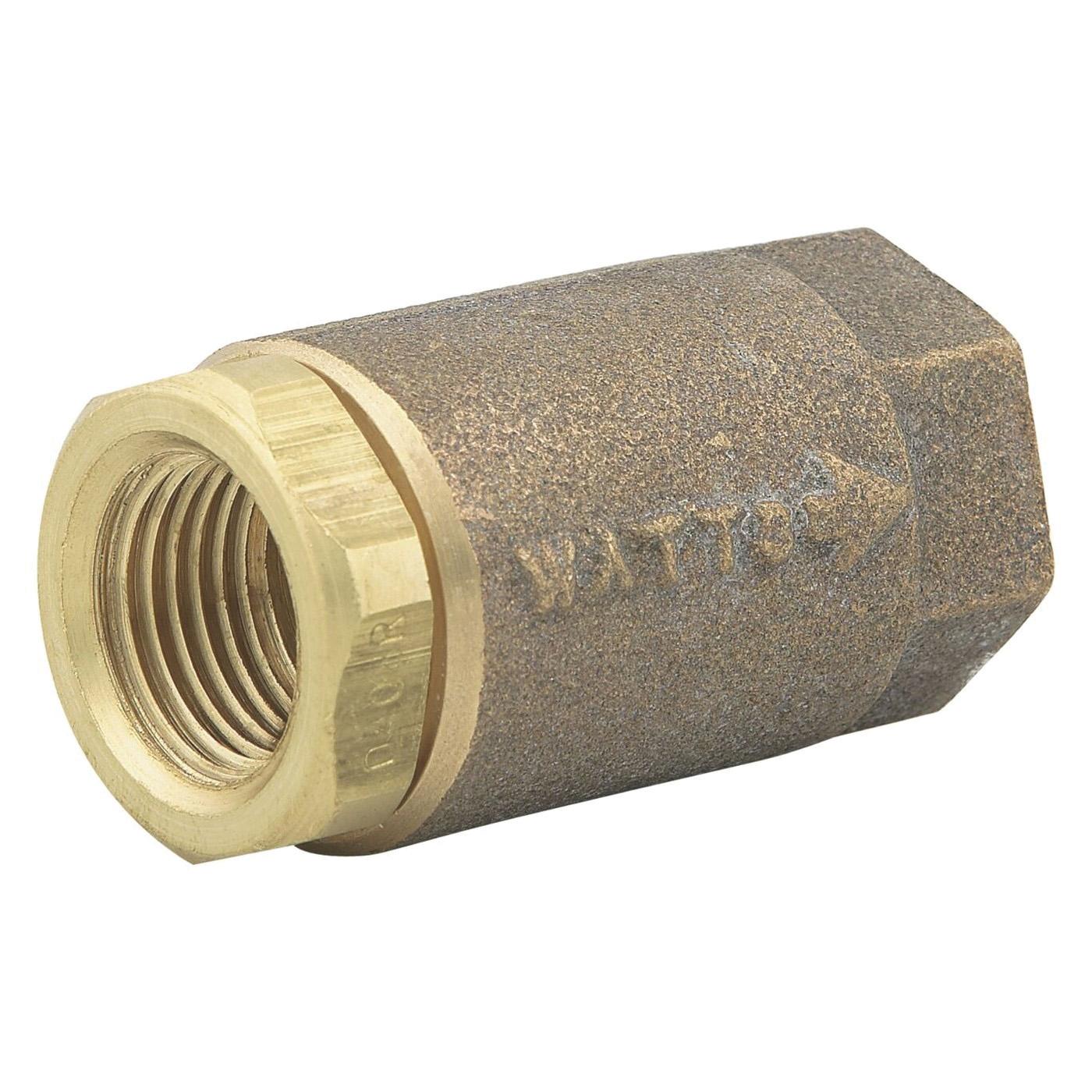

This 1/2 in lead-free Maxi-Flo® check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead-free brass body, lead-free brass check and adapter, conical lead-free brass disc, PTFE seat and threaded end connections. The maximum working pressure rating is 400 psi, WOG non-shock at -20 to 100 deg F and 15 psi WSP at 250 deg F.
WATTS® Maxi-Flo® Silent Check Valve, LF600 Series, 1/2 in Nominal, FNPT Connection, 400 psi, -20 to 100 deg F, Fluid Media, 2-1/8 in Inlet to Outlet Length, Brass Body, PTFE Seat, Nitrile Seal, Brass Disc, Stainless Steel Trim, Lead-Free, 1-1/4 in H, Domestic/Import: Domestic
| Body Material | : | Brass |
| Connection Type | : | FNPT |
| Dimensions | : | 1-1/4 in H |
| Disc Material | : | Brass |
| Domestic/Import | : | Domestic |
| Inlet to Outlet Length | : | 2-1/8 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Fluid |
| Nominal Size | : | 1/2 in |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Pressure Rating | : | 400 psi |
| Seal Material | : | Nitrile |
| Seat Material | : | PTFE |
| Series | : | LF600 Series |
| Temperature Rating | : | -20 to 100 deg F |
| Trim Material | : | Stainless Steel |
- Install in horizontal or vertical position with upward flow
- Low pressure drop equivalent to a swing check
