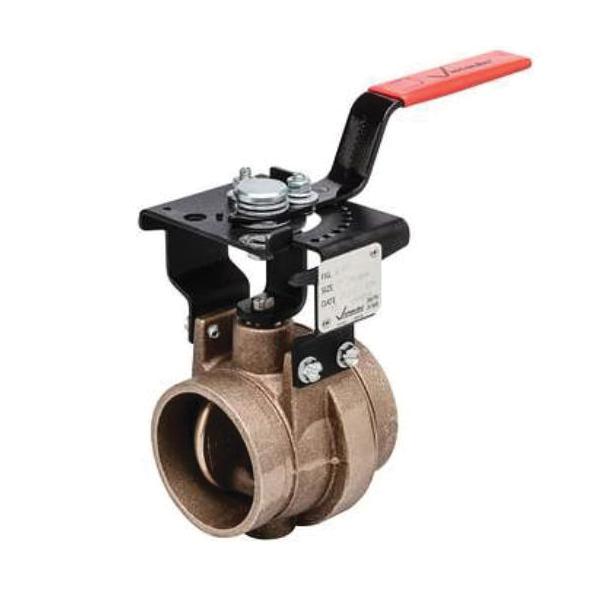

Victaulic® 608N Series 608-LL-4 Butterfly Valve With Memory Stop, 4 in, Flanged, Brass, 300 psi
- Manufacturer: Victaulic Company
- Brand Name: Victaulic®
- Part#: VIC608CLL-4
- MPN: 608-LL-4
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Victaulic® Butterfly Valve With Memory Stop, 608N Series, 4 in Nominal, Flanged Connection, 300 psi, Water Media, Lever Lock Handle Actuator, 4.63 in Inlet to Outlet Length, 5-1/2 in Top to Inlet Center, Brass Body, Fluoroelastomer Seat, EPDM Stem, EPDM Seal, Aluminum Bronze Disc, Stainless Steel Trim, Ductile Iron Handle, 383 Cv Flow Coefficient (Cv), 20 to 180 deg F, 20 to 230 deg F, Material Standard: UNS C87850, C95500, ASTM A536, Grade 65-45-12, ASTM B306, Contains Lead, 4.125 in OD x 8.9 in H
| Actuator Type | : | Lever Lock Handle |
| Body Material | : | Brass |
| Connection Type | : | Flanged |
| Dimensions | : | 4.125 in OD x 8.9 in H |
| Disc Material | : | Aluminium Bronze |
| Flow Coefficient (Cv) | : | 383 Cv |
| Handle Material | : | Ductile Iron |
| Inlet to Outlet Length | : | 4.63 in |
| Lead-Free/Contains Lead | : | Contains Lead |
| Material Standard | : | UNS C87850, C95500, ASTM A536, Grade 65-45-12, ASTM B306 |
| Media | : | Water |
| Nominal Size | : | 4 in |
| Pressure Rating | : | 300 psi |
| Seal Material | : | EPDM |
| Seat Material | : | Fluoroelastomer |
| Series | : | 608N Series |
| Stem Material | : | EPDM |
| Temperature Rating | : | 20 to 180 deg F, 20 to 230 deg F |
| Top to Inlet Center | : | 5-1/2 in |
| Trim Material | : | Stainless Steel |
Specification Sheet
