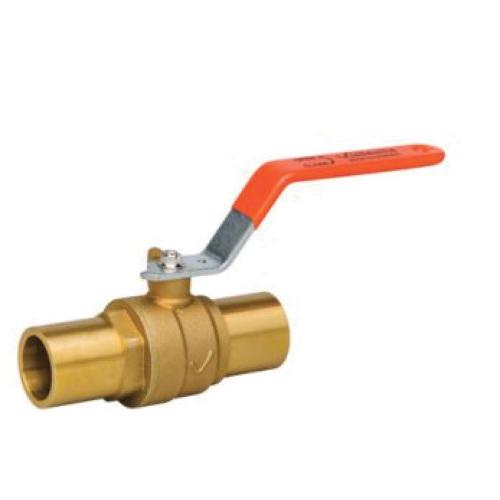

Victaulic® P89 Series P89-1-1/4 Ball Valve, 1-1/4 in, Plain, Brass
- Manufacturer: Victaulic Company
- Brand Name: Victaulic®
- Part#: VICP89-114
- MPN: P89-1-1/4
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Victaulic® Ball Valve, P89 Series, 1-1/4 in Nominal, Plain Connection, Full Port, Water Media, 4-3/4 in Inlet to Outlet Length, 2.88 in Top to Inlet Center, Handle Operator, 114 Cv Flow Coefficient (Cv), Material Standard: ASTM CW602N, Brass Body, Brass Stem, EPDM Seal, Steel Handle, Brass Ball, PTFE Softgoods
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Connection Type | : | Plain |
| Flow Coefficient (Cv) | : | 114 Cv |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 4-3/4 in |
| Material Standard | : | ASTM CW602N |
| Media | : | Water |
| Nominal Size | : | 1-1/4 in |
| Operator Type | : | Handle |
| Port Type | : | Full |
| Seal Material | : | EPDM |
| Series | : | P89 Series |
| Softgoods Material | : | PTFE |
| Stem Material | : | Brass |
| Top to Inlet Center | : | 2.88 in |
- Steel handle with vinyl grip
