RWV® 004-46120 R&W5015AB-12
  1. pin-int

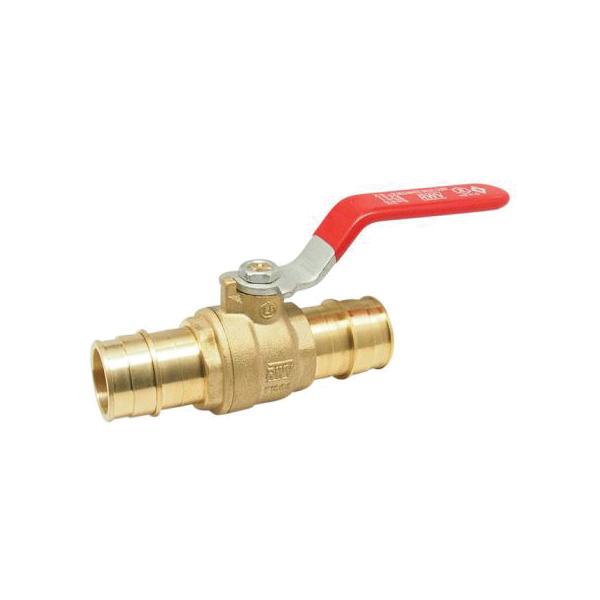

RWV® 004-46120 Ball Valve, 1/2 in, PEX, DZR Brass, 300 psi

RWV® 004-46120 Ball Valve, 1/2 in, PEX, DZR Brass, 300 psi

  • Manufacturer: RED-WHITE VALVE CORP
  • Brand Name: RWV®
  • Part#: R&W5015AB-12
  • MPN: 004-46120
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

RWV® Ball Valve, 1/2 in Nominal, PEX Connection, Full Port, 300 psi, Pressure Class: 400 lb, Gas, Oil, Water Media, 2.48 in Inlet to Outlet Length, 1.38 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B927 C27453, DZR Brass Body, PTFE Seat, Brass Stem, NBR Seal, NBR Packing, Steel Handle, Brass Ball, NBR Softgoods, Lead-Free, 15 to 160 deg F, Additional Information: Two-Piece

Additional Information      :      Two-Piece
Ball Material      :      Brass
Body Material      :      DZR Brass
Connection Type      :      PEX
Dimensions      :      2.48 in L
Handle Material      :      Steel
Inlet to Outlet Length      :      2.48 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM B927 C27453
Media      :      Gas, Oil, Water
Nominal Size      :      1/2 in
Opening Size      :      0.39 in
Operator Type      :      Lever Handle
Packing Material      :      NBR
Port Type      :      Full
Pressure Class      :      400 lb
Pressure Rating      :      300 psi
Seal Material      :      NBR
Seat Material      :      PTFE
Series      :      5015AB Series
Softgoods Material      :      NBR
Stem Material      :      Brass
Temperature Rating      :      15 to 160 deg F
Top to Inlet Center      :      1.38 in
Trim Material      :      Brass/PTFE
  • F1960 Full Port
  • Virgin PTFE Seats
  • Double NBR O-ring Packing
  • Blow-Out Proof Stem
  • For Use with PEX Tubing
