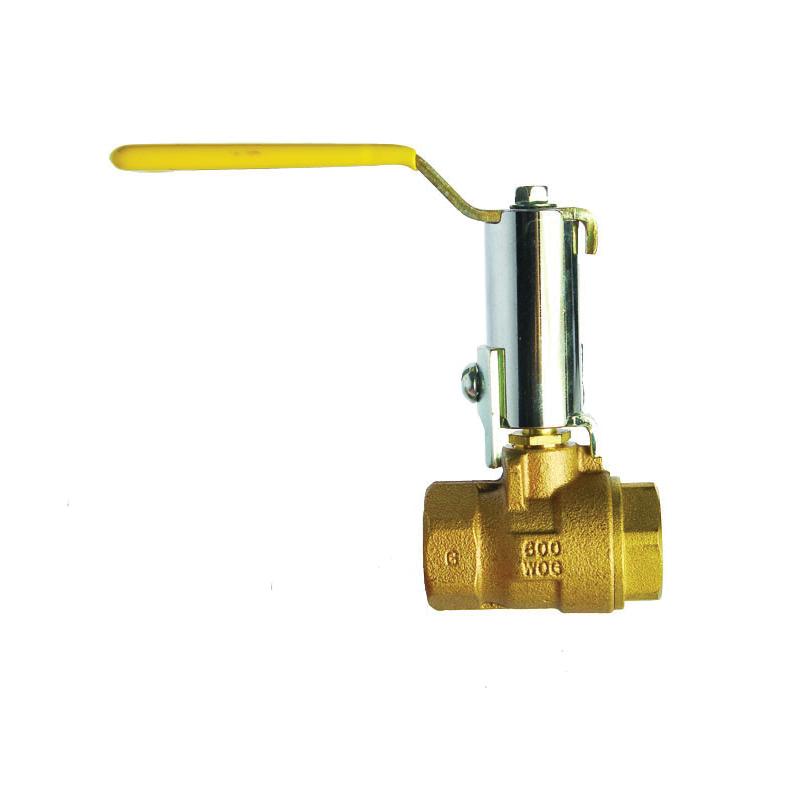

Milwaukee Valve BA-100S-XM-2 Ball Valve, 2 in, NPT, Bronze, 600 psi WOG
- Manufacturer: Milwaukee Valve
- Brand Name: Milwaukee Valve
- Part#: MIVBA100S-XM-2
- MPN: BA-100S-XM-2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Milwaukee Valve Ball Valve, 2 in Nominal, NPT Connection, Standard Port, 600 psi WOG, 1.56 in Orifice, 4.30 in Inlet to Outlet Length, 3 in Top to Inlet Center, 1 Handles, Handle Operator, 287 Cv Flow Coefficient (Cv), Material Standard: ASTM B584, Bronze Body, RPTFE Seat, 316 Stainless Steel Stem, Brass Trim, PTFE Packing, Steel Handle, 316 Stainless Steel/Brass Ball, RPTFE Softgoods, 4.3 in L x 1.56 in W x 5.25 in H
| Ball Material | : | 316 Stainless Steel/Brass |
| Body Material | : | Bronze |
| Connection Type | : | NPT |
| Dimensions | : | 4.3 in L x 1.56 in W x 5.25 in H |
| Flow Coefficient (Cv) | : | 287 Cv |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 4.30 in |
| Material Standard | : | ASTM B584 |
| Nominal Size | : | 2 in |
| Number of Handles | : | 1 |
| Operator Type | : | Handle |
| Orifice Size | : | 1.56 in |
| Packing Material | : | PTFE |
| Port Type | : | Standard |
| Pressure Rating | : | 600 psi WOG |
| Seat Material | : | RPTFE |
| Softgoods Material | : | RPTFE |
| Stem Material | : | 316 Stainless Steel |
| Top to Inlet Center | : | 3 in |
| Trim Material | : | Brass |
- The "XM" stem extension is all metallic with an adjustable memory stop
- This option is designed for installations where pipe insulation would make standard handles inoperable
- The adjustable memory stop allows the valve opening to be limited to a preset position
- This option can be ordered with or without the memory stop
