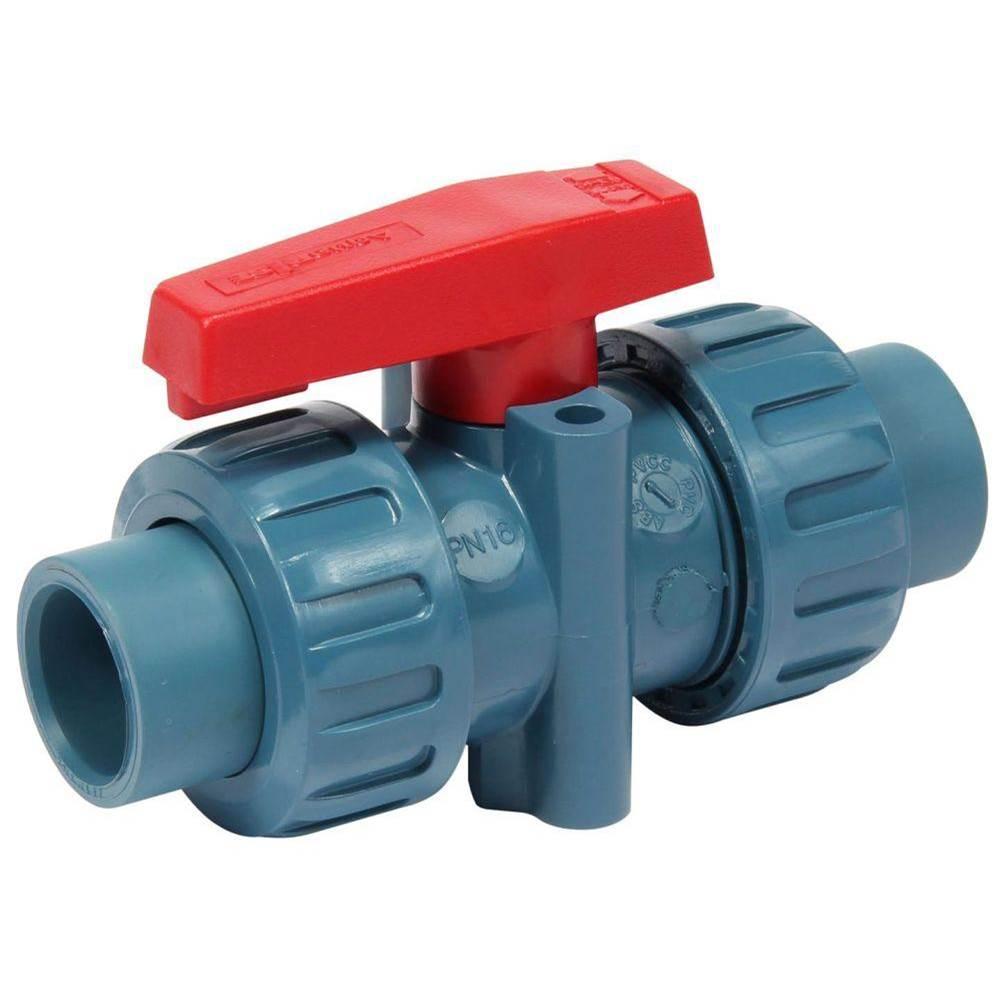

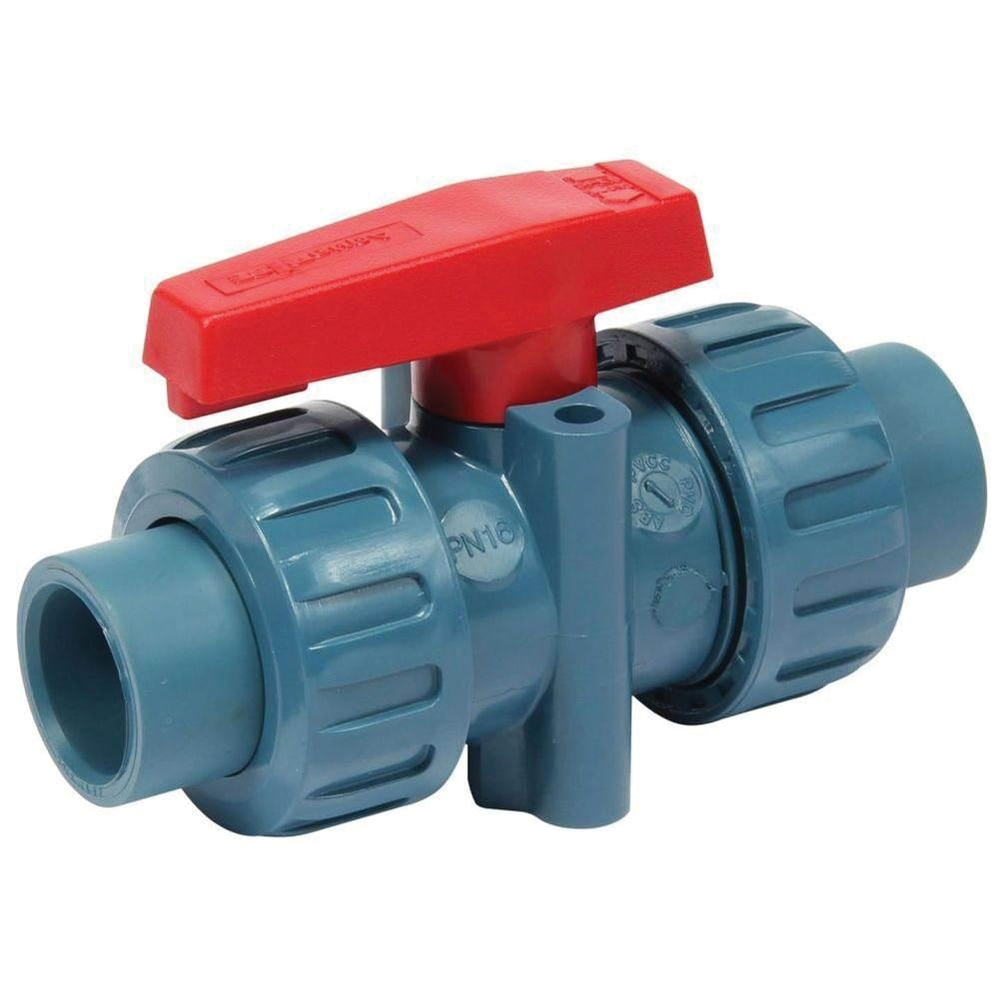

AquaRISE® 359000 True Union Ball Valve, 1/2 in, Socket, CPVC, 72 to 232 psi
- Manufacturer: Aliaxis Group SA
- Brand Name: AquaRISE®
- Part#: AQR359000
- MPN: 359000
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
AquaRise® true union ball valves are available in 1/2 to 2 in sizes and provide a quick quarter turn shut-off in AquaRise® piping systems. The true union ends allow the piping system to be disassembled for repair or maintenance purposes.
AquaRISE® True Union Ball Valve, 1/2 in Nominal, Socket Connection, 72 to 232 psi, 4.409 in Inlet to Outlet Length, 1.799 in Top to Inlet Center, Quarter-Turn Handle Operator, CPVC Body, PTFE Seat, EPDM Softgoods
| Body Material | : | CPVC |
| Connection Type | : | Socket |
| Inlet to Outlet Length | : | 4.409 in |
| Nominal Size | : | 1/2 in |
| Operator Type | : | Quarter-Turn Handle |
| Pressure Rating | : | 72 to 232 psi |
| Seat Material | : | PTFE |
| Softgoods Material | : | EPDM |
| Top to Inlet Center | : | 1.799 in |
Specification Sheet
