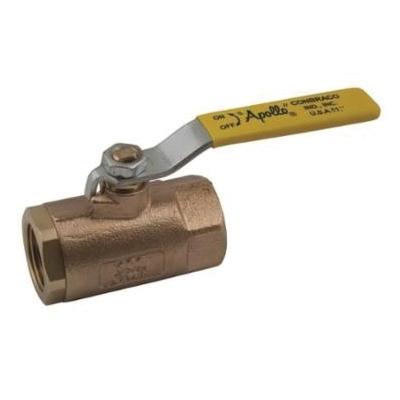

Apollo® 70-100 Series 70-108-01 Ball Valve, 2 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
- Manufacturer: Aalberts Integrated Piping Systems
- Brand Name: Apollo®
- Part#: APL7010801
- MPN: 70-108-01
- UPC: 670750655968
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Apollo® 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a two-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo® South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo® Ball Valve, 70-100 Series, 2 in Nominal, FNPT Connection, Standard Port, 2-Piece, Standard, 150 psi WSP, 600 psi CWP, Gas, Steam, Water Media, 1-1/2 in Orifice, 4.68 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B16/B584, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, Brass/PTFE/RPTFE Trim, MPTFE Packing, Steel/Vinyl Handle, Bronze Ball, MPTFE/PTFE/RPTFE Softgoods, Yellow, 500 deg F, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
| Additional Information | : | 29 inHg Vacuum |
| Ball Material | : | Bronze |
| Body Material | : | Bronze |
| Color | : | Yellow |
| Configuration | : | 2-Piece, Standard |
| Connection Type | : | FNPT |
| Dimensions | : | 4.68 in L |
| Domestic/Import | : | Domestic |
| Handle Material | : | Steel/Vinyl |
| Inlet to Outlet Length | : | 4.68 in |
| Material Standard | : | ASTM B16/B584 |
| Media | : | Gas, Steam, Water |
| Nominal Size | : | 2 in |
| Operator Type | : | Lever Handle |
| Orifice Size | : | 1-1/2 in |
| Packing Material | : | MPTFE |
| Port Type | : | Standard |
| Pressure Rating | : | 150 psi WSP, 600 psi CWP |
| Seal Material | : | PTFE |
| Seat Material | : | RPTFE |
| Series | : | 70-100 Series |
| Softgoods Material | : | MPTFE/PTFE/RPTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 500 deg F |
| Top to Inlet Center | : | 3-1/4 in |
| Trim Material | : | Brass/PTFE/RPTFE |
- Premium materials and heavy-duty construction
- Adjustable stem packing gland
- Blowout-proof stem design
- RPTFE seats and MPTFE stem packing rings
- Chromium-plated ball
- 100% factory tested
- Manufactured in the USA
