Apollo® 78-304-RV APL78304RV
  1. pin-int

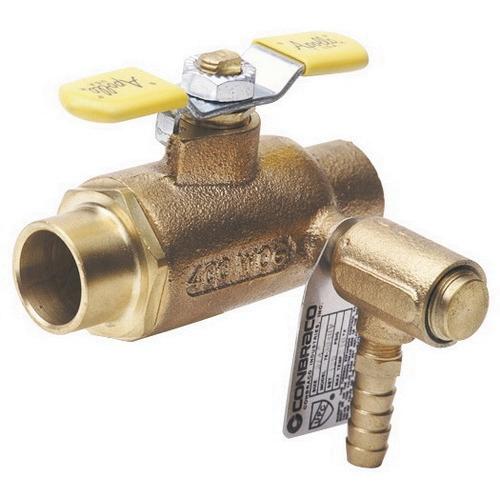

Apollo® EXV 78-304-RV Thermal Expansion Relief Valve, 3/4 in Nominal, Solder x Hose, 125 psi, 210 deg F

Apollo® EXV 78-304-RV Thermal Expansion Relief Valve, 3/4 in Nominal, Solder x Hose, 125 psi, 210 deg F

  • Manufacturer: Aalberts Integrated Piping Systems
  • Brand Name: Apollo®
  • Part#: APL78304RV
  • MPN: 78-304-RV
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Apollo 78RV series combination water heater isolation valve/IAPMO approved thermal expansion relief device solves 2 code requirements while saving time, installation space and money! Ideal alternative to expansion tanks in residential plumbing systems. Made in the USA, from proven dezincification resistant ASME grade materials.

Apollo® Thermal Expansion Relief Valve, Model: EXV, 3/4 in Nominal, Solder x Hose Connection, 125 psi, Lever Actuator, Cast Brass Body, RTFE Seat, Brass Stem, Brass Trim, RTFE Stem Packing, Steel-Plated Plastisol Handle, 210 deg F, 3.9 in L x 3.3 in W x 4 in H

Actuator Type      :      Lever
Body Material      :      Cast Brass
Connection Type      :      Solder x Hose
Dimensions      :      3.9 in L x 3.3 in W x 4 in H
Handle Material      :      Steel-Plated Plastisol
Model      :      EXV
Nominal Size      :      3/4 in
Packing Material      :      RTFE Stem
Pressure Rating      :      125 psi
Seat Material      :      RTFE
Stem Material      :      Brass
Temperature Rating      :      210 deg F
Trim Material      :      Brass
  • Combination water heater shut-off and thermal expansion relief valve
  • 400 lb/sq-in ball valve maximum pressure
  • Relief valve factory set and sealed, 125 lb/sq-in maximum
  • RTFE stem bearing
  • ASTM B16 brass retainer
  • ASTM B584 cast brass relief body
  • Stainless steel relief spring
  • Silicone rubber relief seat
