WATTS® 174A-060 3/4 WTS174A-60-34
  1. pin-int

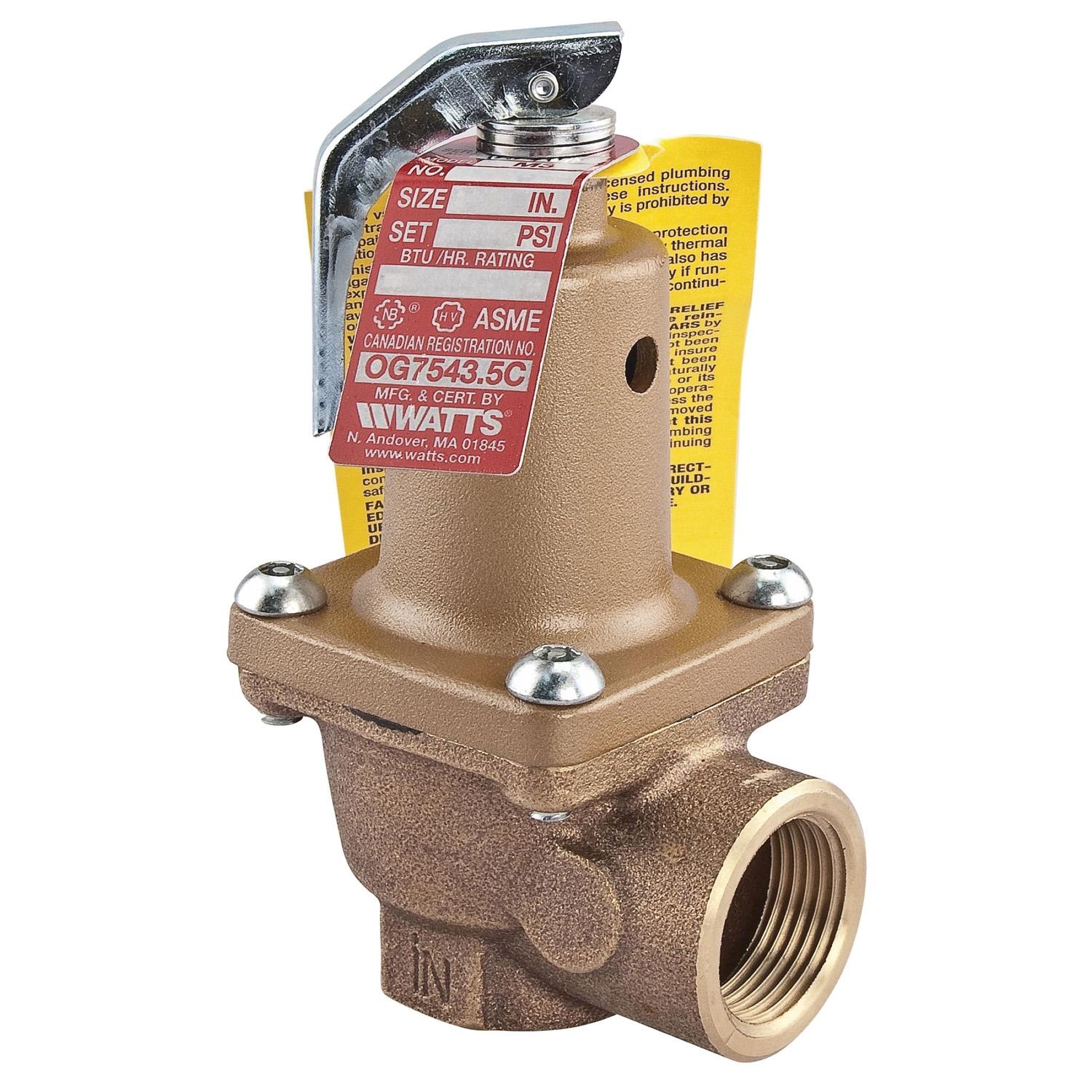

WATTS® 174A Series 174A-060 3/4 Pressure Relief Valve, 3/4 in Nominal, FNPT, 30 to 150 psi, 250 deg F, Bronze Body

WATTS® 174A Series 174A-060 3/4 Pressure Relief Valve, 3/4 in Nominal, FNPT, 30 to 150 psi, 250 deg F, Bronze Body

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part#: WTS174A-60-34
  • MPN: 174A-060 3/4
  • UPC: 098268013115
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

This 3/4 in boiler pressure relief valve is used in hot water heating and domestic supply boiler applications to protect against excessive pressures on all types of hot water heating supply boiler equipment. It consists of a bronze body construction with NPT threaded female inlet and NPT threaded female outlet (drain) connections, non-metallic disc to metal seating, stainless steel spring and test lever. It resists corrosive water conditions, sticking and freezing and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief, not as an operating control. The pressure setting is 60 psi, with corresponding high ratings from 650000 to 14370000 Btu/hr.

WATTS® Pressure Relief Valve, 174A Series, 3/4 in Nominal, FNPT Connection, 30 to 150 psi, Spring Loaded Actuator, Bronze Body, Metal Seat, Stainless Steel Trim, 250 deg F, 2-3/4 in L x 4-1/2 in H

Actuator Type      :      Spring Loaded
Body Material      :      Bronze
Connection Type      :      FNPT
Dimensions      :      2-3/4 in L x 4-1/2 in H
Material      :      Bronze
Nominal Size      :      3/4 in
Plumbing and Flow Control      :      Plumbing and Flow Control
Pressure Rating      :      30 to 150 psi
Seat Material      :      Metal
Series      :      174A Series
Temperature Rating      :      250 deg F
Trim Material      :      Stainless Steel
  • Automatic reseating
  • Non-mechanical seat to disc alignment will not stick or freeze
  • Seat located above drain water can not be trapped and sediment can not foul seat
  • Water seal of high temperature resisting material isolates spring working parts from water during relief
