CashAcme™ 23807-0045 SHK23807-0045
  1. pin-int

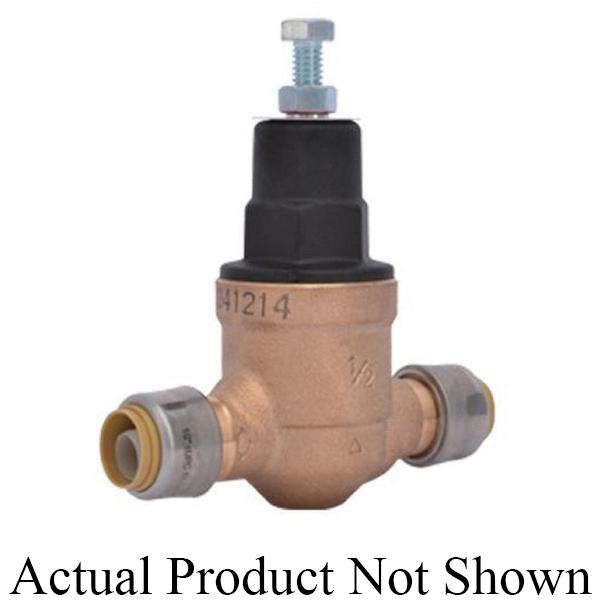

CashAcme™ EB45 Series 23807-0045 Pressure Regulating Valve, 1/2 in Nominal, Direct SharkBite, 400 psi, 33 to 180 deg F

CashAcme™ EB45 Series 23807-0045 Pressure Regulating Valve, 1/2 in Nominal, Direct SharkBite, 400 psi, 33 to 180 deg F

  • Manufacturer: Reliance Worldwide Corporation
  • Brand Name: CashAcme™
  • Part#: SHK23807-0045
  • MPN: 23807-0045
  • UPC: 697285238077
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The EB45 pressure regulator with SharkBite™ push-fit connections features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 comes factory set at 45 psi but may be adjusted between 10 to 70 psi.

CashAcme™ Pressure Regulating Valve, EB45 Series, 1/2 in Nominal, Direct SharkBite Connection, 400 psi, Water Media, 6-51/64 in Inlet to Outlet Length, 4-3/8 in Top to Inlet Center, Brass Body, Polyphenylene Ether Seat, EPDM Disc, Iron/Polymer Trim, EPDM Packing, EPDM Softgoods, 33 to 180 deg F, 1-47/64 in W, Additional Information: 45 psi Factory Setting Pressure Rating

Additional Information      :      45 psi Factory Setting Pressure Rating
Body Material      :      Brass
Connection Type      :      Direct SharkBite
Dimensions      :      1-47/64 in W
Disc Material      :      EPDM
Inlet to Outlet Length      :      6-51/64 in
Media      :      Water
Nominal Size      :      1/2 in
Packing Material      :      EPDM
Pressure Rating      :      400 psi
Seat Material      :      Polyphenylene Ether
Series      :      EB45 Series
Softgoods Material      :      EPDM
Temperature Rating      :      33 to 180 deg F
Top to Inlet Center      :      4-3/8 in
Trim Material      :      Iron/Polymer
