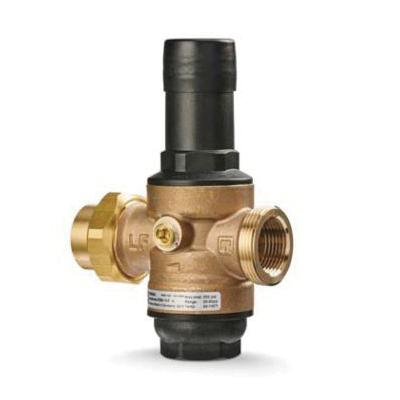

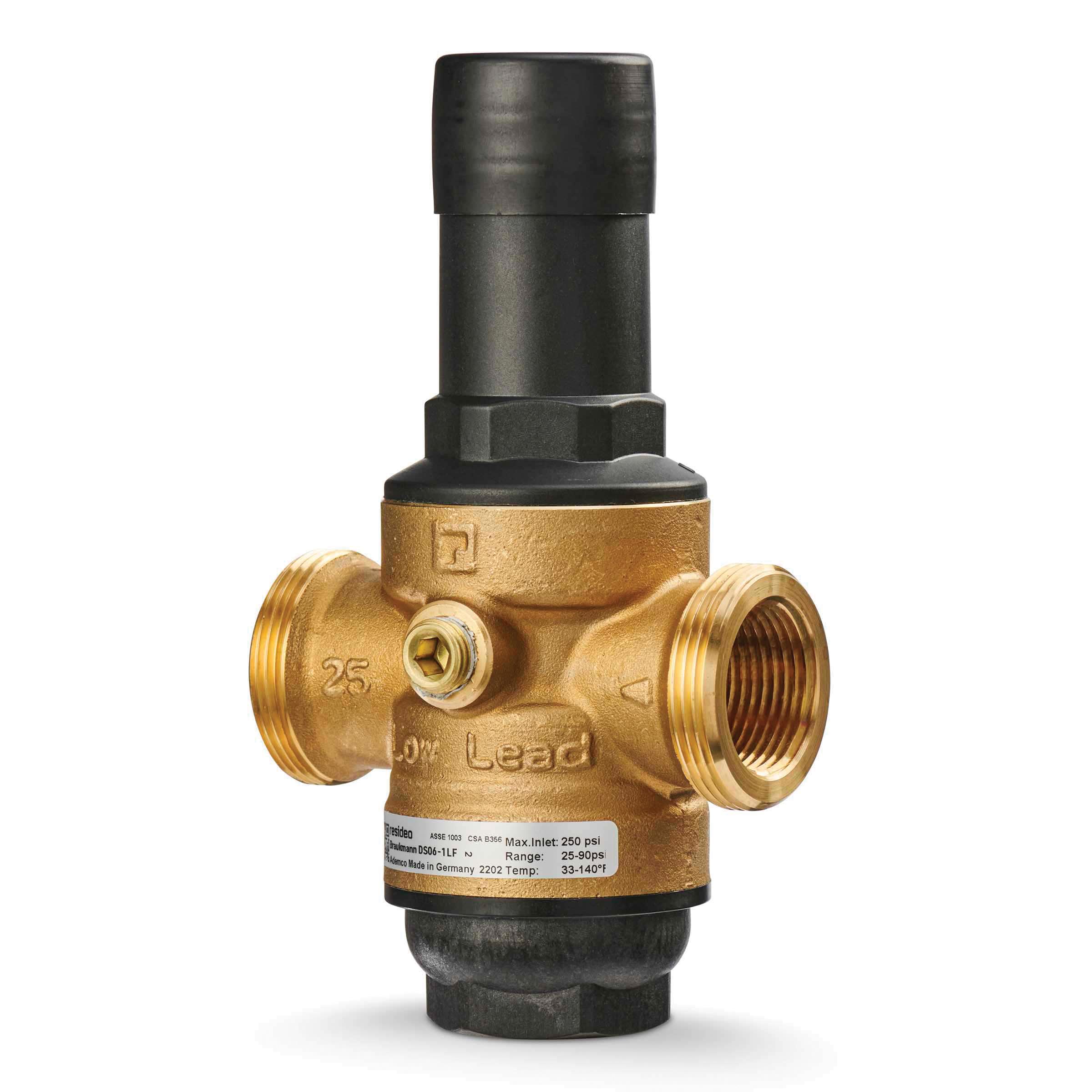

Honeywell Home Braukmann DS06 DialSet® Series DS06-101-SUT-LF Pressure Regulating Valve, 3/4 in Nominal, FNPT x Threaded
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWDS06-101SUT-LF-U
- MPN: DS06-101-SUT-LF
- UPC: 085267467667
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The DS06 DialSet® pressure regulating valve from resideo is a high-quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Honeywell Home Braukmann Pressure Regulating Valve, DS06 DialSet® Series, 3/4 in Nominal, FNPT x Threaded Connection, 25 to 90 psi, 250 psi, 25.14 gpm Flow Rate, Water Media, Bronze Body, 33 to 140 deg F, 3-35/64 in L x 5-53/64 in H, Domestic/Import: Import, Additional Information: 14.5 psi Differential, 10:1 Reducing Ratio, Balanced Single Seat Construction
| Additional Information | : | 14.5 psi Differential, 10:1 Reducing Ratio, Balanced Single Seat Construction |
| Body Material | : | Bronze |
| Connection Type | : | FNPT x Threaded |
| Dimensions | : | 3-35/64 in L x 5-53/64 in H |
| Domestic/Import | : | Import |
| Flow Rate | : | 25.14 gpm |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 25 to 90 psi, 250 psi |
| Series | : | DS06 DialSet® Series |
| Temperature Rating | : | 33 to 140 deg F |
- Built-in Dial-Set™ - no gauge is needed to install or set static pressure
- Non-corroding unitized cartridge contains all working parts and is easily replaceable
- Outlet adjustment range of 25 to 90 psi make it suitable for household, commercial, industrial and turf and irrigation applications
- Install it just about anywhere
- The internal and external threading allows for use in thread by thread, single-union or double union configurations
- 1/4 in NPT tap accessible from both sides to validate output
- Built-in strainer to simplify maintenance
- High-quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures
