POWERS™ LM490-2 PWCLM490-2
  1. pin-int

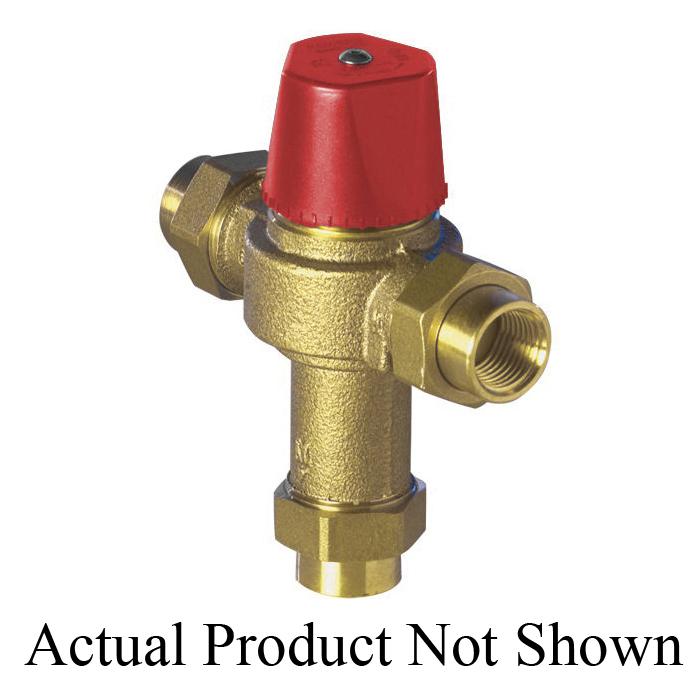

POWERS™ HydroGuard LM490 Series LM490-2 Thermostatic Tempering Valve, 1/2 in Nominal, Sweat, 0.5 gpm, 125 psi

POWERS™ HydroGuard LM490 Series LM490-2 Thermostatic Tempering Valve, 1/2 in Nominal, Sweat, 0.5 gpm, 125 psi

  • Manufacturer: Watts Water Technologies
  • Brand Name: POWERS™
  • Part#: PWCLM490-2
  • MPN: LM490-2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Ideal for hot water heaters and multiple lavatory installations, providing flow rates as high as 23 gpm. Compact design and brass construction simplify installation and maintenance while ensuring years of dependable service. Unique handle mechanism allows exact temperature selection to be locked-in for added protection. The Series LM490 and LM490-10 features POWERS™ advanced paraffin-based actuation technology, integral checks and inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures.

POWERS™ Thermostatic Tempering Valve, HydroGuard LM490 Series, 1/2 in Nominal, Sweat Connection, 125 psi, 0.5 gpm Flow Rate, Cold, Hot Water Media, Thermal Actuator, 3-1/8 in Inlet to Outlet Length, Brass Body, 90 to 160 deg F, 4-13/16 in W x 5-3/8 in H

Actuator Type      :      Thermal
Body Material      :      Brass
Connection Type      :      Sweat
Dimensions      :      4-13/16 in W x 5-3/8 in H
Flow Rate      :      0.5 gpm
Inlet to Outlet Length      :      3-1/8 in
Media      :      Cold, Hot Water
Nominal Size      :      1/2 in
Plumbing and Flow Control      :      Plumbing and Flow Control
Pressure Rating      :      125 psi
Series      :      HydroGuard LM490 Series
Temperature Rating      :      90 to 160 deg F
  • Advanced thermal actuator improves performance at low flow
  • Solid brass construction enhances durability
  • Adjustable temperature selection with lock down
  • Union connections for easy maintenance
  • Integral checks and screen prevents cross-flow and contamination
