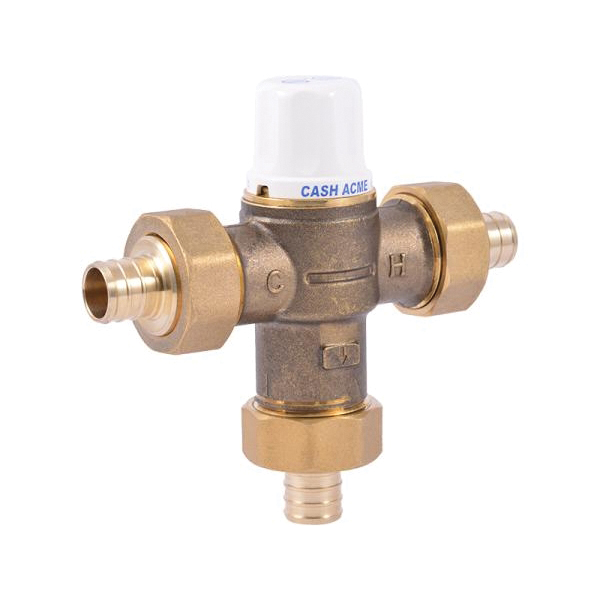

CashAcme™ 24532 Thermostatic Mixing Valve, 3/4 x 3/4 x 3/4 in Nominal, Barbed x Barbed x Barbed, 0.34 to 11 gpm, 145 psi

The HG160 LF is a next generation Temperature Actuated Mixing Valve that mixes hot water with cold to deliver tempered water at a controlled temperature. The Heatguard 160 is designed to assist in prevention of scalding and thermal shock. The Heatguard 160 LF is a compact, robust, simple product incorporating the latest in thermostatic technology. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each valve is factory set and locked to a maximum 120 deg F (49deg C). Adj. outlet temperature range: 95-120 deg F (35-48.9 deg C). Domestic and Commercial point-of-use. The Heatguard 160 is intended to control the water temperature to individual or multiple fixtures such as sinks, lavatories, or bath tubs to reduce the risk of scalding and thermal shock. It can also be installed in gang shower applications where the bather has no access to the temperature adjustment means.

CashAcme™ Thermostatic Mixing Valve, 3/4 x 3/4 x 3/4 in Nominal, Barbed x Barbed x Barbed Connection, 145 psi, 0.34 to 11 gpm Flow Rate, 2-29/32 in Inlet to Outlet Length, Brass Body, EPDM Seal, 115 to 120 deg F, 4-15/16 in H x 5-19/64 in W

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/CashAcme_24532_Specification_Sheet.pdf
