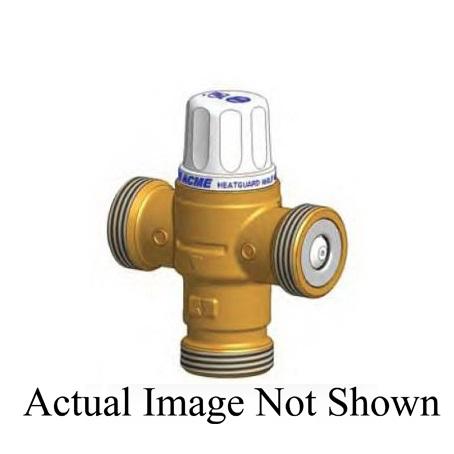

CashAcme™ 24528 Thermostatic Mixing Valve, 1/2 in Nominal, Sweat, 0.34 to 11 gpm, 145 psi, 115 to 120 deg F, Brass Body
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: CashAcme™
- Part#: CSA24528
- MPN: 24528
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The HG160 LF is a next generation temperature actuated mixing valve that mixes hot water with cold to deliver tempered water at a controlled temperature, at flow rates as low as 0.34 gpm (1.3 lpm) or as high as 11 gpm (42 lpm). The Heatguard® 160 is designed to assist in prevention of scalding and thermal shock. The Heatguard 160 LF is a compact, robust, simple product incorporating the latest in thermostatic technology. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each valve is factory set and locked to a maximum 120 deg F (48.9 deg C). Adjustable outlet temperature range 95 to 120 deg F (35 to 48.9 deg C).
CashAcme™ Thermostatic Mixing Valve, 1/2 in Nominal, Sweat Connection, 145 psi, 0.34 to 11 gpm Flow Rate, Water Media, 2.67 in Inlet to Outlet Length, Brass Body, EPDM Seal, 115 to 120 deg F, 4.84 in L x 4.72 in H
| Body Material | : | Brass |
| Connection Type | : | Sweat |
| Dimensions | : | 4.84 in L x 4.72 in H |
| Flow Rate | : | 0.34 to 11 gpm |
| Inlet to Outlet Length | : | 2.67 in |
| Media | : | Water |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 145 psi |
| Seal Material | : | EPDM |
| Temperature Rating | : | 115 to 120 deg F |
- Every valve is tested for performance prior to shipping - specify and install with confidence
- Accurate temperature control, even under varying supply conditions - increased user comfort and convenience
- Robust, low complexity construction - superior reliability, improved user safety
- Total flow shut-off if cold supply fails - greater end user safety
- Unique, purpose designed adjuster tool - minimizes unauthorized tampering with valve setting
