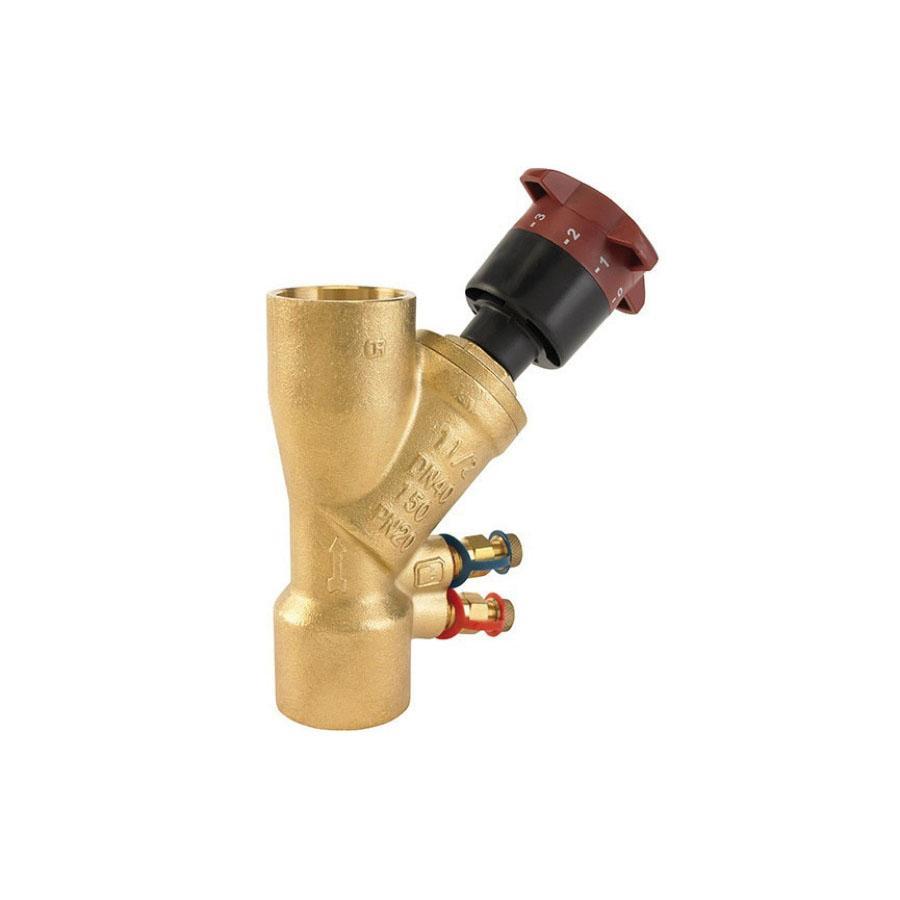

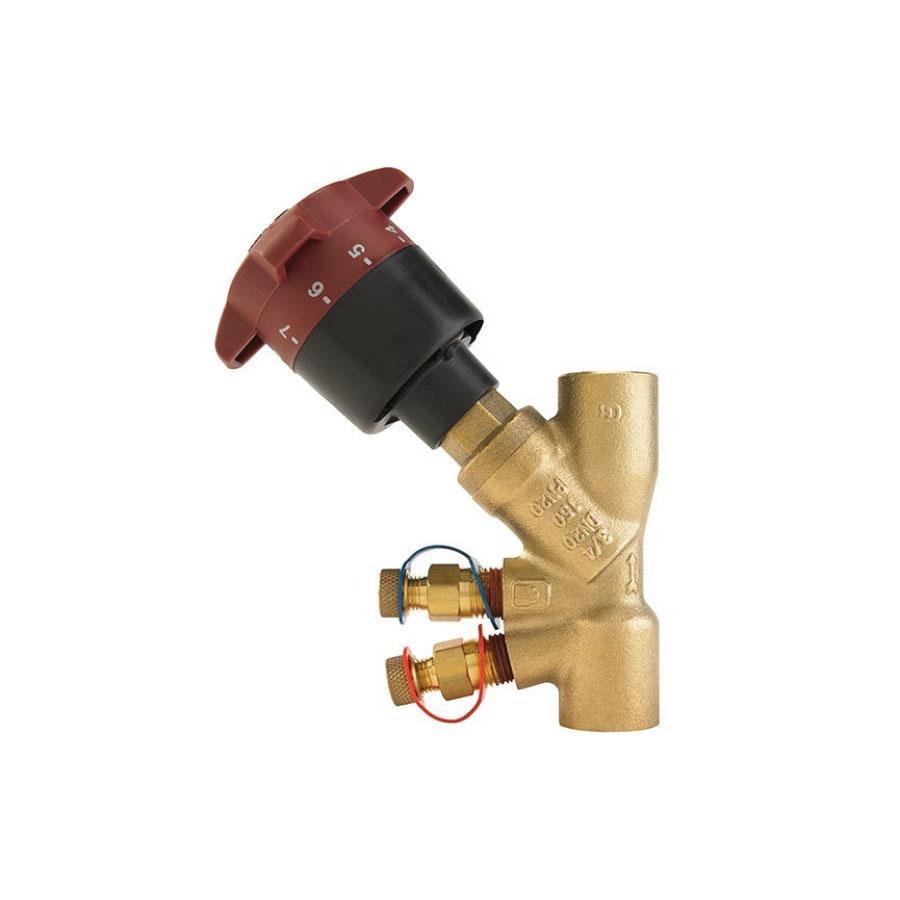

ARMSTRONG 570109-332 Compact Mini-Sweat Circuit Balancing Valve, 1/2 in Nominal, Solder Joint, 300 psi, -4 to 300 deg F
- Manufacturer: Armstrong Fluid Technology
- Brand Name: Armstrong
- Part#: SAA570109-332
- MPN: 570109-332
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
ARMSTRONG Compact Mini-Sweat Circuit Balancing Valve, 1/2 in Nominal, Solder Joint Connection, 300 psi, 3.12 in Inlet to Outlet Length, 5 Positions, Brass Body, Hand Wheel Operator, -4 to 300 deg F, 3.53 in H, Additional Information: Model CBV-MS
| Additional Information | : | Model CBV-MS |
| Body Material | : | Brass |
| Connection Type | : | Solder Joint |
| Dimensions | : | 3.53 in H |
| Inlet to Outlet Length | : | 3.12 in |
| Model | : | CBV-MS |
| Nominal Size | : | 1/2 in |
| Number of Positions | : | 5 |
| Operator Type | : | Hand Wheel |
| Pressure Rating | : | 300 psi |
| Temperature Rating | : | -4 to 300 deg F |
- High precision, fixed orifice PMD assures faster setting and superior accuracy
- Integral fixed KV primary measuring element for maximum differential pressure signal stability and optimum flow correlation accuracy (measured vs actual flow rate accuracy of +/-5% across 95% or higher of the operating range)
- Five full 360 deg turns from open to closed, providing unparalleled flow control and energy savings
- Micrometer style handle enables precise flow rate adjustment
- Line size optimization for ideal performance for 0.7 to 1.3 m/s flow velocity
- Wye pattern, globe style valve design for reduced turbulence
- Soft seats for positive shut-off
- Hidden memory stop saves setting after shut-off/servicing and prevents accidental set point tampering
