Caleffi 132552A CFI132552A
  1. pin-int

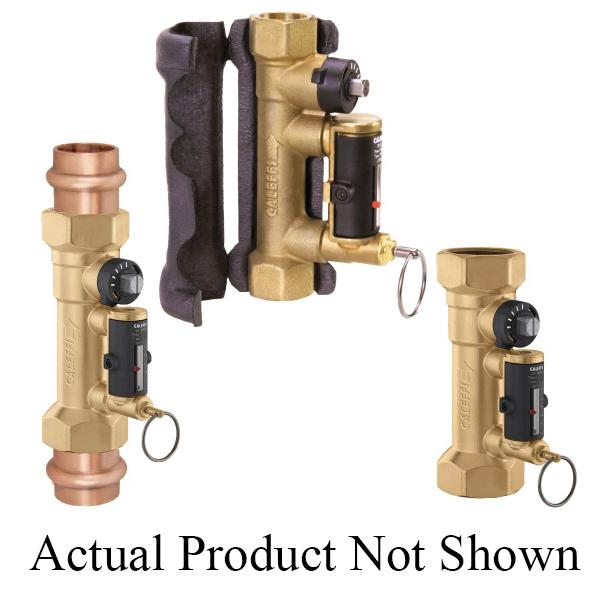

Caleffi 132552A QuickSetter Static Balancing Valve With Flow Meter, 3/4 in Nominal, FNPT, 2 to 7 gpm, 150 psi

Caleffi 132552A QuickSetter Static Balancing Valve With Flow Meter, 3/4 in Nominal, FNPT, 2 to 7 gpm, 150 psi

  • Manufacturer: Caleffi
  • Brand Name: Caleffi
  • Part#: CFI132552A
  • MPN: 132552A
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Caleffi QuickSetter Static Balancing Valve With Flow Meter, 3/4 in Nominal, FNPT Connection, 150 psi, 2 to 7 gpm Flow Rate, Brass Body, EPDM Seal, Brass Trim, 6.3 Flow Coefficient (Cv), 14 to 230 deg F, 5-3/4 in L

Body Material      :      Brass
Connection Type      :      FNPT
Dimensions      :      5-3/4 in L
Flow Coefficient (Cv)      :      6.3
Flow Rate      :      2 to 7 gpm
Nominal Size      :      3/4 in
Pressure Rating      :      150 psi
Seal Material      :      EPDM
Temperature Rating      :      14 to 230 deg F
Trim Material      :      Brass
  • Direct reading of flow rate
  • No sight gauge clouding or scaling
  • Rotatable valve for flow rate adjustment
  • Graduated scale flow meter with magnetic movement flow rate indicator
  • With insulation: 150 psi maximum working pressure, 14-230 deg F temperature range, 50% maximum percentage of glycol
